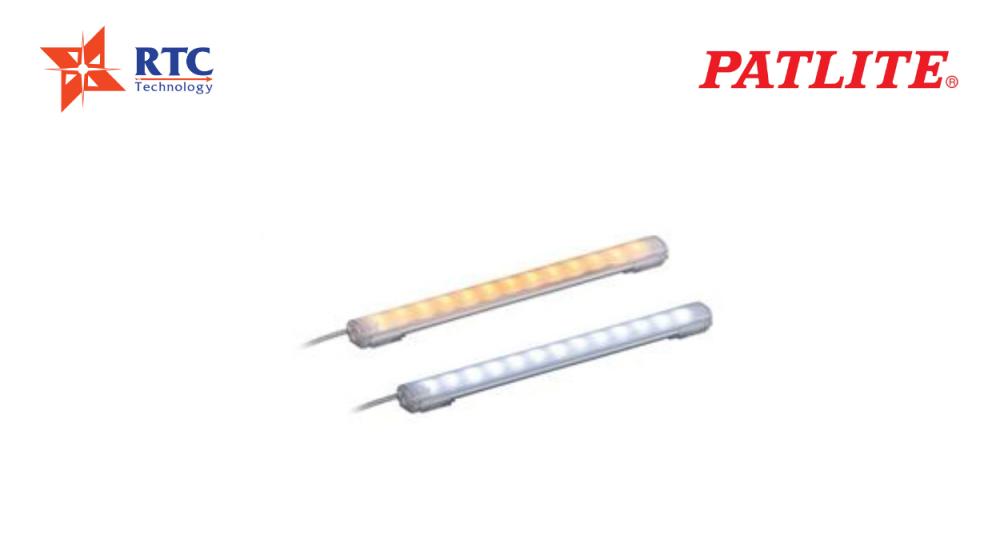

Product Features CLA-A
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications
|
DIMENSIONS |
Overall dimensions without brackets
・ 124mm x 30mm x 19.5mm
・ 224mm x 30mm x 19.5mm
・ 324mm x 30mm x 19.5mm
・ 624mm x 30mm x 19.5mm
・ 924mm x 30mm x 19.5mm
・ 1224mm x 30mm x 19.5mm |
|
RATED VOLTAGE |
24V DC |
|
FUNCTIONS |
Continuous Only |
|
MOUNTING |
・ Snap-in screw mounted bracket
・ Snap-in magnetic mounted bracket
・ Side mounted brackets
・ Indoor, any direction |
|
BODY STYLE |
・ Polycarbonate housing
・ Pre-assembled, pre-wired |
|
BODY COLOR |
Body: Translucent-white |
|
LIGHT SOURCE |
・ High-intensity LED chip, Daylight
・ High-intensity LEDchip, Amber (324mm sizes only)
・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
|
LENS MATERIAL |
Translucent-white Polycarbonate Resin |
|
CONFORMITY STANDARDS |
・ CE Marking
・ UL
・ RoHS |
|
PROTECTION RATING |
・ IP66
・ IP67
・ IP69K |
