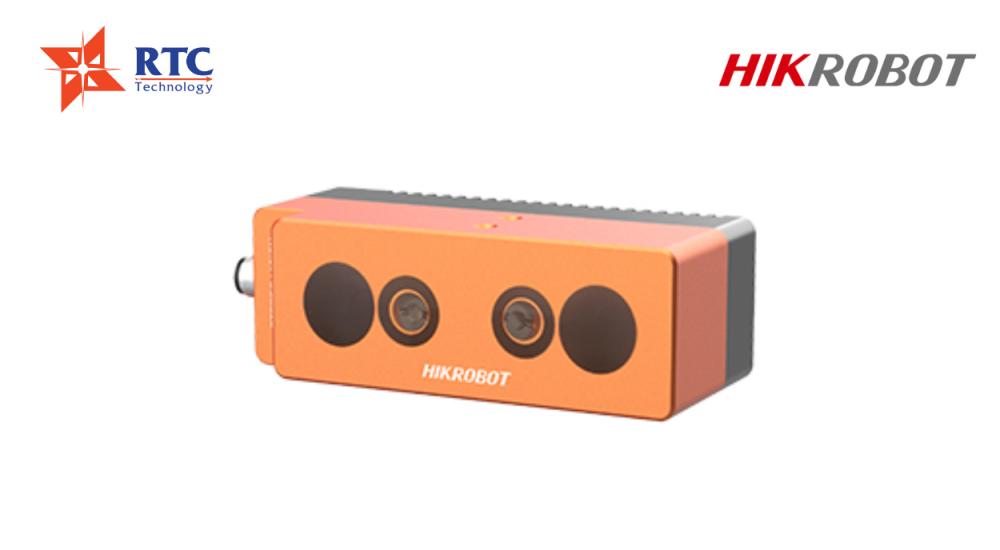

MV-DB1308-05H
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Features
-
The device has built-in high-precision measurement algorithm, and the volume error is small
-
Near-infrared laser module fill light, wider dynamic range
-
Narrow-band filter design, effectively suppress ambient light interference
-
Support depth data or volume measurement data output
-
IP65 protection grade, suitable for harsh industrial environment
Order model: MV-DB1308-05H
Dimensions
*The data involved in the product may vary due to factors such as the environment, and the company does not bear the consequences arising therefrom.
model |
model |
MV-DB1308-05H |
name |
Binocular stereo camera, working range 0.5-1m, depth map frame rate 14fps, detection accuracy ±5mm (standard parts) |
performance |
near field |
500mm×500mm |
far field of view |
1000mm×1000mm |
Clear Distance (CD) |
500mm |
Measuring range (MR) |
500mm |
Volume detection range |
100 mm×100 mm×30 mm ~ 500 mm×500 mm×500 mm |
Detection accuracy |
±5mm |
Scan frame rate |
14fps@depth map, 5fps@volume data |
type of data |
Raw map, depth map, volume data |
Laser Safety Level |
3R |
Electrical Characteristics |
Data interface |
GigE |
Digital I/O |
12-pin M12 interface provides power supply and 1 channel RS-232 |
powered by |
12VDC |
Typical power consumption |
<10W@12VDC |
structure |
Dimensions |
45mm×140mm×61mm |
weight |
about 700 g |
temperature |
Working temperature 0~45℃, storage temperature -30~80℃ |
humidity |
20%~85% RH without condensation |
General Specifications |
software |
3DMVS, BarCode |
operating system |
Windows 7/10 32/64bits |
Certification |
CE, FCC, RoHS |
