*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model

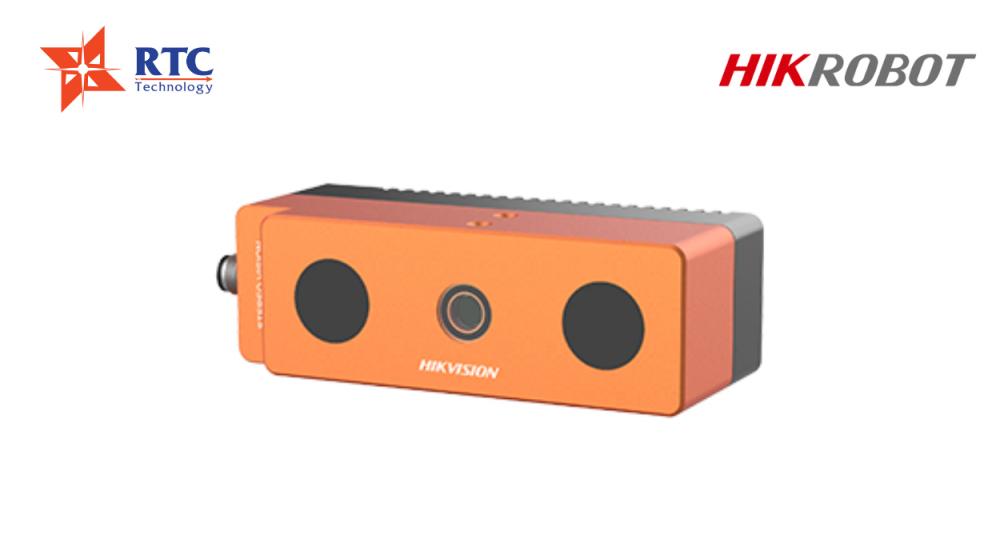

MV-DB1612-05H
Type
Binocular Stereo Camera
Performance
Near field of view
1100 mm × 950 mm
Far field of view
2050 mm × 1750 mm
Clearance distance
1000 mm
Measurement range
800 mm
Dimension detection range
100 mm × 100 mm × 30 mm to 800 mm × 800 mm × 800 mm
Detection accuracy
±5 mm
Scan frame rate
11 fps @depth image, 4 fps @volume data
Data type
Raw image, depth image, volume data
Laser safety class
3R
Electrical features
Data interface
GigE
Digital I/O
12-pin M12 interface provides power, RS-232 × 1
Power supply
12 VDC
Power consumption
Typ. < 10.0 W@ 12VDC
Mechanical
Dimension
46 mm × 181.6 mm × 58.2 mm (1.8" × 7.1" × 2.3")
Weight
800 g (1.8 lb.)
Temperature
Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
