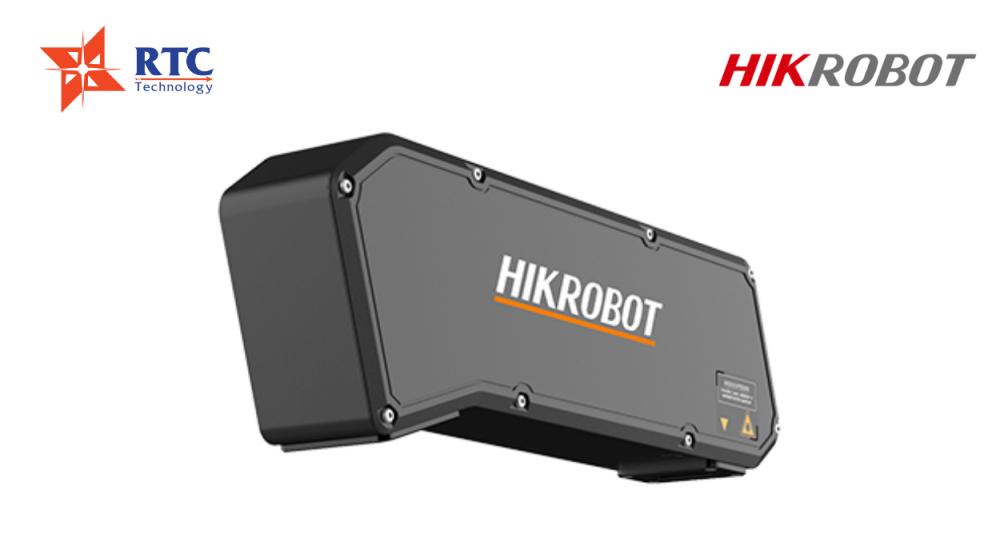

MV-DL2025-04H-H
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Key Feature
Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection.
Detection speed up to 3 m/s and accuracy of 5 mm.
Adopts high-power laser module with wide dynamic range.
Adopts narrow band pass filter to suppress the interference.
Stable performance with simultaneous exposure and laser.
Supports outputting data type of length/width/height, integral volume, point cloud data, and location coordinates.
Available Model: MV-DL2025-04H-H
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Product Model
MV-DL2025-04H-H
Type
Line Laser 3D Camera
Camera
Near field of view
1000 mm
Far field of view
2600 mm
Clearance distance
650 mm
Measurement range
1000 mm
Accuracy
± 5 mm
Detection speed
3 m/s @±5 mm
Max. Scan frame rate
600 fps
Data type
Point cloud data, length/wide/height, integral volume, top coordinates
Trigger Mode
External trigger, encoder input
Laser safety level
Class 3B
Electrical features
Data interface
GigE
General Purpose I/O
12-pin M12 interface provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and RS-232 × 1
Power supply
12 VDC
Power consumption
Typ. < 10.0 W@12VDC
Mechanical
Dimension
354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9")
Weight
1.6 kg (3.5 lb.)
Temperature
Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity
20% to 85% RH, without condensation
General
Client software
3DMVS, CodePlatform
Operating system
32/64-bit Windows XP/7/10
Compatibility
CE, FCC
