model |
model |

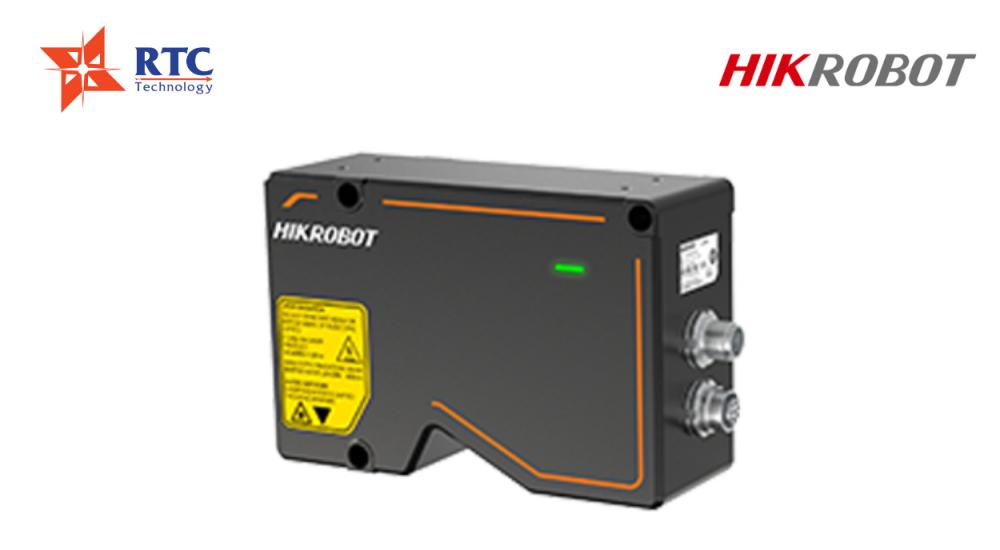

MV-DP2307-01H |
name |
3D laser profile sensor, working range 77-157mm, scanning rate 700-10000Hz, Z-axis repeatability 0.5um |
performance |
Single contour points |
2048 |
near field |
57.0mm |
far field of view |
96.0mm |
Clear Distance (CD) |
77mm |
Measuring range (MR) |
80mm |
Linearity (±% of MR) |
0.01 |
Resolution (X-axis) |
27.8 ~ 47.2 µm |
Resolution (Z axis) |
3.0 ~ 4.5 µm |
Repeatability (Z axis) |
0.5 µm@sensor test data of standard gauge blocks on optical table |
scanning frequency |
700 Hz (in maximum measurement range), up to 10 KHz (in ROI mode) |
type of data |
Original map, depth map, contour data, brightness map |
trigger mode |
Soft trigger, external trigger, differential encoder trigger |
Laser Safety Level |
Class2M |
Laser wavelength |
405nm |
Electrical Characteristics |
Data interface |
GigE |
Digital I/O |
12-pin M12 interface provides power supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232 |
powered by |
12 ~ 24 VDC |
Typical power consumption |
12W@12VDC |
structure |
Dimensions |
144mm×95.5mm×53mm |
weight |
About 900g |
IP protection class |
IP67 |
temperature |
Operating temperature 0 ~ 45°C, storage temperature -30 ~ 80°C |
humidity |
20%~85%RH without condensation |
General Specifications |
software |
3DMVS |
operating system |
Windows 7/10 32/64bits (8G memory, i5 processor) |
