Model |
Model |

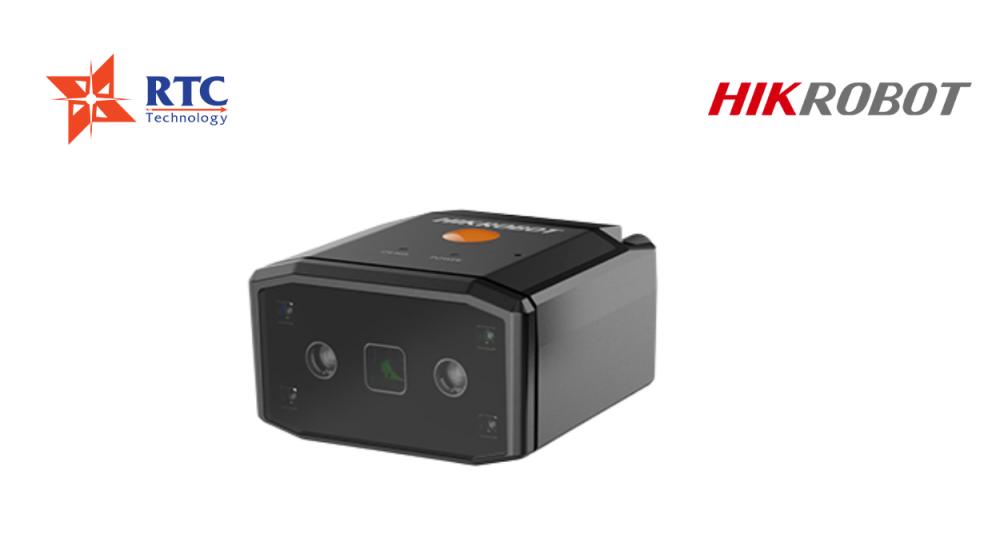

MV-ID2013EM-05S-RBP |
Performance |
Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE
2-dimensional codes: QR Code, Data Matrix |
Max. frame rate |
50 fps |
Max. reading speed |
30 codes/sec |
Sensor type |
CMOS, global shutter |
Pixel size |
2.7 µm × 2.7 µm |
Sensor size |
1/4" |
Resolution |
1280 × 1024 |
Exposure time |
60 μs to 6000 μs |
Gain |
1 dB to 28 dB |
Mono/Color |
Mono |
Communication protocol |
SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, UDP |
Electrical features |
Depth of field* |
Code 39 (5 mil): 75 mm to 215 mm
Code 128 (10 mil): 50 mm to 400 mm
EAN 13 (13 mil): 60 mm to 420 mm
Data Matrix (10 mil): 50 mm to 240 mm
QR Code (15 mil): 40 mm to 290 mm |
Optics |
Focal length |
4.7 mm (0.2") |
Working distance |
120 mm (4.7") |
Ambient illumination |
900 lux@120 mm |
Light source |
Red (polarized) |
Aiming system |
Green LED |
Electrical features |
Data interface |
Fast Ethernet |
Digital I/O |
DB15 connector provides power and I/O, including none-isolated input × 2 (LineIn 0/1), none-isolated output × 2 (LineOut 2/3), RS-232 × 1. Device trigger via pressing trigger button supported. |
Power supply |
12 VDC to 24 VDC |
Max. power consumption |
3.5 W@12 VDC |
Mechanical |
Lens mount |
M5.8-mount |
Indicator |
Power indicator (POWER), status indicator (OK/NG) |
Dimension |
45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
Weight |
Approx. 68.5 g (0.15 lb.) |
Ingress protection |
IP54 |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, non-condensing |
General |
Client software |
IDMVS |
Certifications |
CE, FCC, RoHS |
