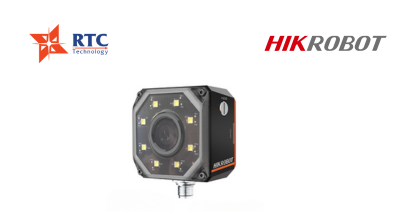

MV-SC2016PC-06S-WBN

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

•Adopts embedded hardware platform for high-speed image processing.
•Adopts built-in position and measurement algorithm to detect object’s presence, position, dimension, etc.
•Multiple IO interfaces for input and output signals.
•Multiple indicators for displaying device status.
•Adopts light cup to ensure uniform brightness in the illuminated area.
•Supports multiple communication protocols, including TCP, UDP, Serial, IO, Modbus, PROFINET, Ethernet/IP, FTP, etc.

Available Model

6 mm focal length vision sensor: MV-SC2016PC-06S-WBN

Dimension

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-SC2016PC-06S-WBN
Model	Type	1.6 MP Vision Sensor
Tools	Vision tools	Feature matching, fixture, measure brightness, blob, detect distance, measure line to line, measure point and line, N point calibration, coordinate conversion, color extraction, color measurement, color transformation, color distinguish, etc.
	Solution capacity	Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.
	Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus TCP, EtherNet/IP
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Max. Frame Rate	60 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Pixel format	RGB 8, Mono 8
	Exposure time	16 μs to 1 s
	Mono/Color	Color
Platform	Memory	2 GB
Platform	Storage	4 GB
Electrical features	Interface	17-pin M12 connector provides power, Ethernet, digital IO, and serial port
	Ethernet	Fast Ethernet
	Digital IO	Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and button input × 1. Output signal can be set as NPN or PNP
	Power supply	12 VDC to 24 VDC
	Power consumption	8.6 W@12 VDC
Mechanical	Lens mount	M12-mount, manual focus supported
	Lens focal length	6 mm
	Lens cap	Transparent lens cap. Polarization or infrared filter lens cap is optional
	Lighting	LED × 8: white (by default)/red/blue/NIR, LED × 48: white/red/blue
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), and result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7")
	Weight	Approx. 240 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Operating method	Via web based interface, SmartView
General	Certifications	CE, FCC, KC

MV-SC2016PC-06S-WBN
