Key Feature
Higher image clarity and contrast ratio
Ultra-low distortion and higher relative illumination rate
Good optical performance at ultra-short working distance
Compact design, convenient for device integration

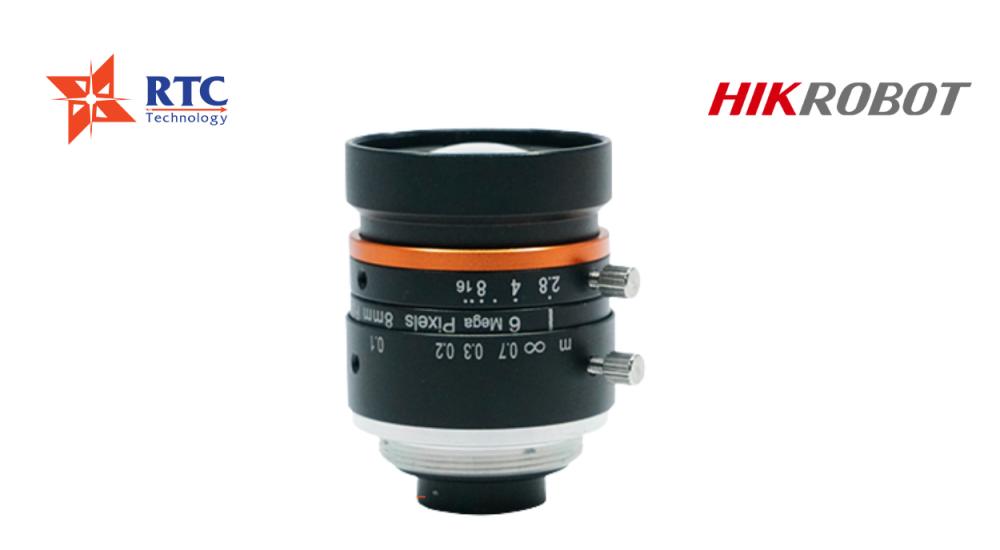

Available Model: MVL-HF0828M-6MPE
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model
MVL-HF0828M-6MPE
Type
1/1.8” 8mm 6MP FA LENS
Performance
Focal Length
8 mm
F-Number
F2.8 ~ F16
Image Size
Φ9 mm(1/1.8'')
Distortion
0.049%
Minimum Operation Distance
0.1 m
Field of View
D(8.96mm):58.50°
H(7.38mm):49.46°
V(4.92mm):34.19°
Mechanical
Iris Control
Manual
Focus Control
Manual
Filter Thread
M30.5×P0.5
Mount
C-Mount
Flange Back Length
17.526 mm
Dimension
Φ33×34.5 mm
Weight
63.3 g
Temperature
-10 ~ 50℃
General
Certification
RoHS2.0
