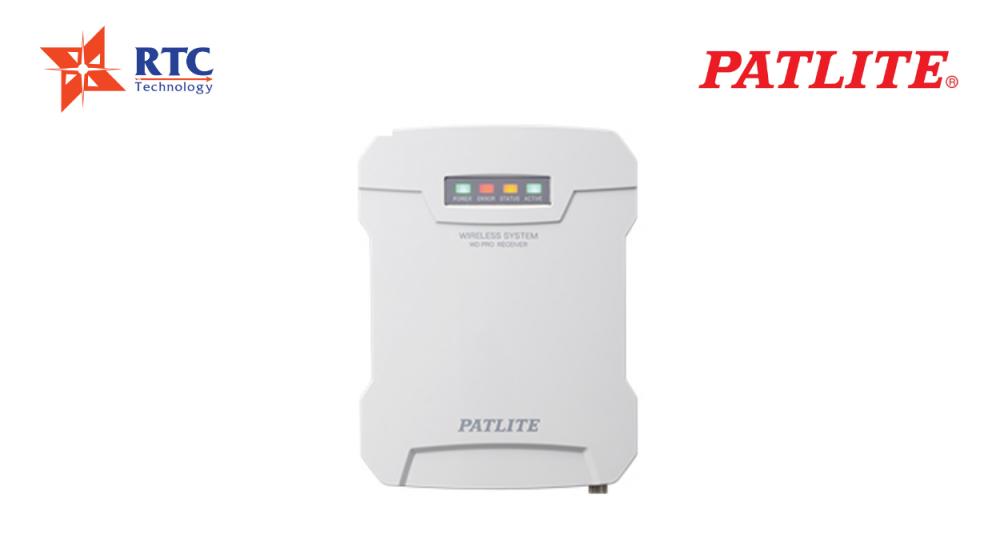

WDR-LE-Z2-PRO Wireless Data Acquisition System WD PRO Receiver

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

PoE Capability
　The WD PRO Receiver can access both power and data through a single Ethernet cable so that wiring space and costs can be minimized.

Mounting Bracket
　The main unit of the WD PRO Receiver clicks onto a surface-mounting bracket.
　This allows for easy attachment and detachment, as well as versatility in mounting angles.

Wireless Connection Diagnostics
　The WD PRO Receiver is capable of tracking the quality of wireless connection between the receiver and its connected transmitters.
　Up to 72 hours of diagnosis results can be collected, taken at 10-minute intervals.
　There are 5 levels of diagnosis results, allowing users to identify when it is necessary to modify the installation environment.
　This collected data can easily be viewed on your computer through the setup browser.

Andon Display
　Real-time light (and buzzer) statuses of all connected signal towers can be displayed onto your computer screen through the setup browser.
　This can be done simultaneously with the CSV data collection.

Collaboration Functions
　In addition to the simple SOCKET protocol, the WD PRO Receiver has collaboration functions using Modbus/TCP and SQL database. 　
　These protocols simplify communication and data collection between devices in your network.

Model	Wireless Data Acquisition System WD PRO Receiver WDR-LE-Z2-PRO	Wireless Data Acquisition System WD PRO Receiver〈Lite version〉 WDR-LE-Z2-PRO-L
Power Supply Input	24V DC / USB / PoE
Mounting Method	Horizontal mounting / Wall mounting / Ceiling mounting
Network Communication Method	10BASE-T / 100BASE-TX / 1000BASE-T
Transmitter Connection	Maximum 30 units
Communication Range	Line of sight, Approximately 30m *1
IP Address Setting	Manual setup / DHCP auto configuration
Operating Ambient Temperature	-10℃～+50℃ (AC Adaptor accessory : 0℃～+40℃)
Protection Rating	IP20
Wireless Connection Diagnostics	Real-time diagnosis / Long-period diagnosis (1~72 hours)
Transmitter Wireless Settings	Built-in setup via browser / WDS-WIN01 software	Use WDS-WIN01
Host System Communication	・CSV file *Use WDS-WIN01 ・SOCKET communication 　(WDR protocol) ・SOCKET communication 　(WDR PRO protocol) ・Database linkage (MySQL) ・Modbus/ TCP communication	・CSV file *Use WDS-WIN01 ・ SOCKET communication 　(WDR protocol)
Andon Display	○	×
