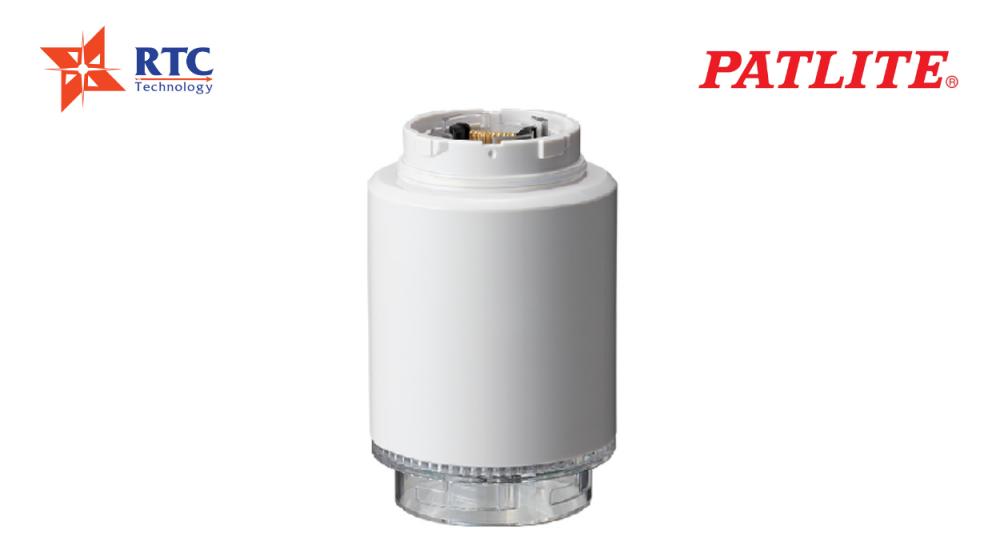

WDT-4LR-Z2 Wireless Data Acquisition System LR Transmitter

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features




    The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.







    WDS






    Model Specifications WDT-4LR-Z2

    Rated Voltage - 24V DC
    Protocols - Telecommunication Protocols: IEEE-802.15.4 (Wireless Communications)
    Functions - Connected Model: LR4 type Tiered Signal Tower Body unit top attachment
    - Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
    - Communication distance: About 30m from source (Reference Value)
    - Number of Available Contacts: Six points (red, amber, green, blue, white, buzzer)
    Conformity Standards - Radio Law Authorized Country: Japan (ARIB STD-T66)
                   United States (FCC)
                   Europe (CE)
