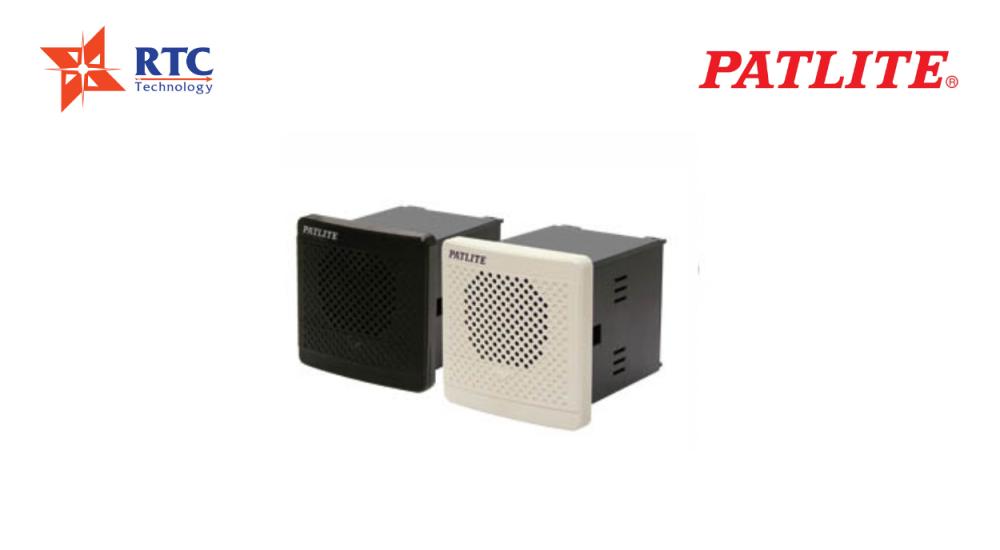

    Product Features BD

    Maximum output level of 90dB at 1m is suitable for use in a noisy factory.
    · 32 sounds are pre-recorded in one unit which can be used for various applications.
    · Sound output level and sound group can be selected by rotary switches stored behind the front panel for easier operation even after installation.
    · Select one sound group from A to P to playback 4 pre-recorded sounds.
    · A new sound group can be created from the 32 sounds by using an optional
    SD Card (sold separately).
    · RoHS compliant.

    PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in BD-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

    Model Specifications

    DIMENSIONS - 80mm square (front)
    - 67.5mm square (back)
    RATED VOLTAGE - DC 12-24V
    - AC100V/220V
    AUDIBLE STYLE - Alarms / Chimes / Melodies
    - Pre-installed
    MOUNTING - Upright position
    - Indoors only
    BODY COLOR - Light Gray
    - Dark Gray
    VOLUME - Maximum 90dB at 1 meter
    - Volume adjustable from zero
    SOUND STORAGE - A total of 32 sounds stored (See Specifications for list)
    - Arranged in 8 selectable groups of sounds
    - Each group has 4 pre-arranged sounds
    CHANNEL SELECTION - Select one of 8 sound groups by rotary switch
    - Select any of 4 sounds in chosen groups by signal input
    - Re-program last sound group from sounds stored in the unit (optional sound card required)
    SOUND CHART - Open the BD-E Specifications page for the complete list of sounds installed
    - Only the BD-E sounds are available for replay in the "Sound Samples" link above
    CONFORMITY STANDARDS - CE Marking
    - UL Component Recognition (US)
    - c-UL Component Recognition (Canada)
    - RoHS
    PROTECTION RATING - IP-54 (panel-mounted, front direction only)
    REMARKS - Dry contact closure such as switches or relay contacts
    - Open-collector transistor (NPN)
    FUNCTIONS - Sound only plays during contact closure
    - Sound stops when contact is Open
