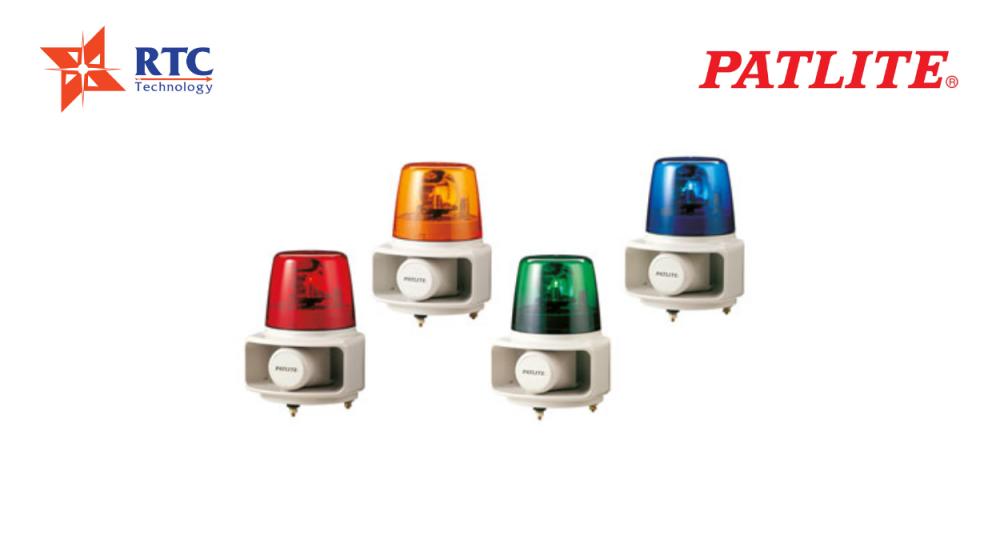

RT-VF 162mm Revolving Warning Light

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Product Features RT-VF

・MP3 with an SD card adds simplification to programming message data for high-quality sound. A total of 63 seconds is possible for playback of four messages in the “Bit Input Mode” and 15 messages in the “Binary Input Mode”. Message data can be easily edited using PATLITE’s playlist editor2 software along with an SD card.
・Various Operational Modes The "Test Mode" can check the volume level, and the "Sound Reduction Mode" can reduce the volume by -20dB just by applying a signal to the reduction input during message playback. In addition, the switching between the "Bit Input Mode”, “Binary Input Mode" and controlling the input for Interrupt Playback Mode” and “Hold Playback Mode" is possible.
・ Moreover, the DC 24V model also corresponds to UL Standards.

Model Specifications

DIMENSIONS	- 162mm diameter
RATED VOLTAGE	- 24V DC - 100V AC - 200V AC
AUDIBLE STYLE	- RT-VF : Maximum Playback time 63 sec : Bit Input 4 / Binary Input 15
SOUND RECORDING OPTIONS	- Messages composed from a pre-recorded library (Message availability may be limited) - Customized Messages can be created at the factory (Additional costs may apply)
SOUND SELECTION	- MPEG1 - Audio Layer Ill (MP3) Standard Bit Rate 64kb1ts/s
VOLUME	- Maximum 105dB at 1 meter with adjustable volume control
STACKABLE TIERS	- Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN for DC24V)
GLOBE COLOR	- Red - Amber - Green - Blue
GLOBE MATERIAL	- AS Resin
PROTECTION RATING	- IP23
CONFORMITY STANDARDS	UL 464(RT-24VFUL)
