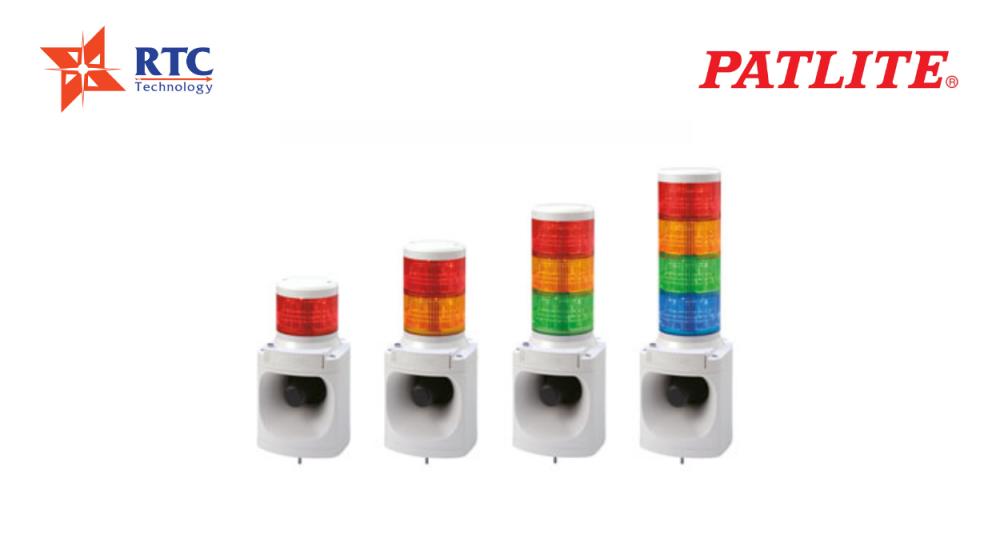

LKEH-FV 100mm Signal Tower

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Product Features LKEH-FV

In order for LKEH-FV to use, you would need to get Playlist Editor of the software.
If you would like to use software to input voice synthesis data, please contact your local PATLITE overseas office by email. The Playlist Editor will be sent to you.

• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately) (LKEH-FV) Message capacity is up to 63 seconds (64kbit/s) with 5 channels by a bit input and 31 channels by nary input.
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.

Model Specifications

DIMENSIONS	- 100mm diameter
RATED VOLTAGE	- 24V DC - 100V AC - 220V AC
AUDIBLE STYLE	- LKEH-FV: 63 seconds total recording time: factory recorded with 5 channel bit input; or 31 channel binary input * MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
VOLUME	- Maximum 105dB at 1 meter with adjustable volume control
BODY STYLE	- Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase
BODY COLOR	- Body: Light gray
GLOBE COLORS	- Red - Amber - Green - Blue - White
GLOBE MATERIAL	- Polycarbonate Resin
PROTECTION RATING	- IP53
OPTIONS	- SDV-2GP
