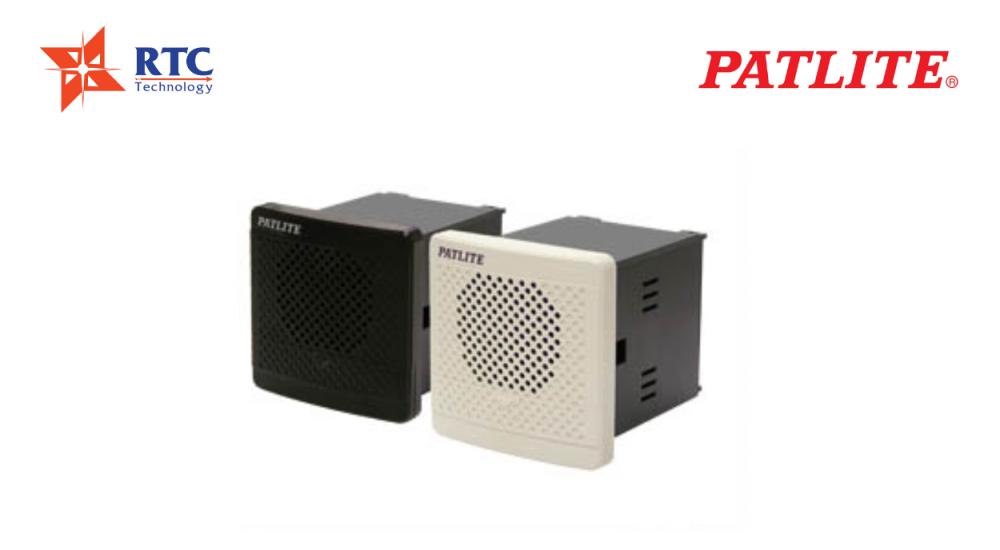

BDV Voice Annunciator BDV

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Product Features BDV

· Only embedded mounting style available.
· Able to produce a loud sound of up to 87 dB (at 1m) despite its compact size
· A volume control on the front panel provides an easy way to adjust the sound volume.
· The use of an SD card allows message changes without dis-mounting the device.
· Environmentally friendly since the unit complies with the EU RoHS Directives.
· Several playback modes are available for various applications.
· Includes binary input as a standard option for selecting up to 15 messages.
· Supports input selection using NPN open-collector transistor.
· The unit complies with EU Directives and includes the CE mark (BDV-15JF only)
· Two colors are available for selecting the best color match for the installation.
· Protection rating: IP54 (only the front when flush mounted)

Model Specifications

DIMENSIONS	- 80mm x 80mm x 94.7mm
RATED VOLTAGE	- DC12/24V - AC100/220V (1)
BODY COLOR	- Dark Gray - Light Gray
VOLUME	- Maximum 87dB at 1 meter
SOUND STORAGE	- Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION	- Select 1 of 4 channels available by signal input to 1 or 4 terminals - In Binary Mode, select 1 of 15 channels available by signal inputs among 4 terminals
CONFORMITY STANDARDS	- CE Marking - RoHS - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
PROTECTION RATING	- IP54
FUNCTIONS	- Sound Reduction Mode reduces volume by 10dB
