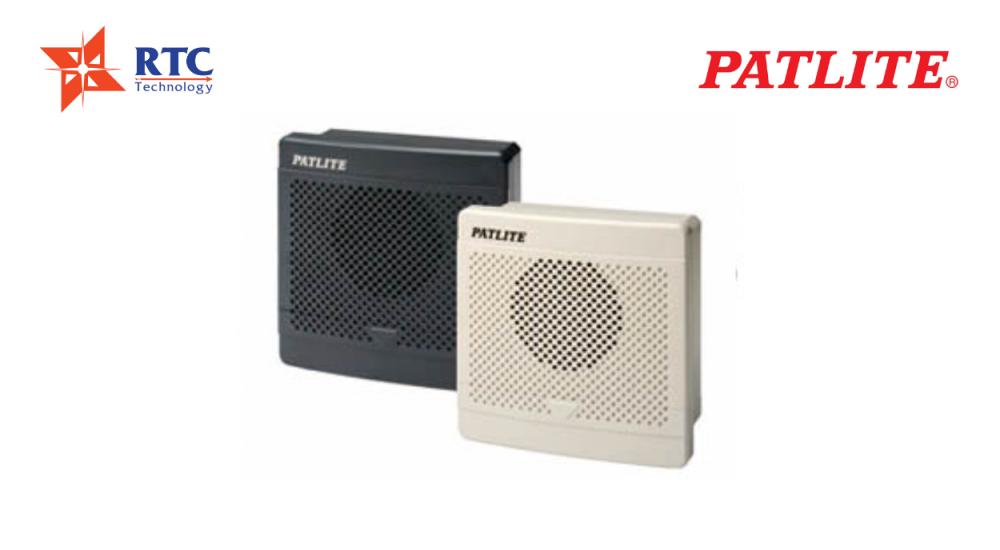

BK 120mm sq., 32 sound BK

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Product Features BK

· 32 sounds are pre-recorded in one unit which can be used for various applications.
· Maximum output level of 95dB at 1m is suitable for use in a noisy factory.
· Volume output and sound groups can be changed easily by rotary switches stored inside of the front panel even after installation.
· Select one sound group from A to H to playback 8 pre-recorded sounds (When controlled by bit input).
· A new sound group can be created from the 32 sounds with an optional SD Card (sold separately).
· RoHS compliant.
· Set the sound selection switch from “ I ” to “ O ” to test the function or sound volume.
· Sound can be played back by a bit input (8 channels) or binary input (32 channels).
※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in BK-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

Model Specifications

DIMENSIONS	- 120mm square (front) - 110mm square (back)
RATED VOLTAGE	- 12-24V DC - 100V AC - 220V AC
AUDIBLE STYLE	- Factory pre-recorded alarms and melodies
MOUNTING	- Panel-mount, horizontal, vertical upwards, vertical downwards - Indoors only
BODY COLOR	- Body: Light Gray - Body: Black
VOLUME	- Maximum sound of 95dB at 1 meter - Volume adjustable from zero
SOUND STORAGE	- A total of 32 sounds stored (See Specifications for list) - Arrange with 8 selectable sound groups - Each group has 8 pre-arranged sounds
CHANNEL SELECTION	- Select one of 8 sound groups by rotary switch - Select any of 8 sounds in the chosen group by signal input - Re-program last sound group from sounds stored in the unit (optional SD Card required)
SOUND CHART	- Open the BD-E Specifications page for the complete list of sounds installed - Only the BD-E sounds are available for replay in the "Sound Samples" link above
CONFORMITY STANDARDS	- CE Marking - RoHS
PROTECTION RATING	- IP-54 (panel-mount in a front direction only)
REMARKS	- Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN)
FUNCTIONS	- Sound only plays during contact closure - Sound stops when contact is Open
