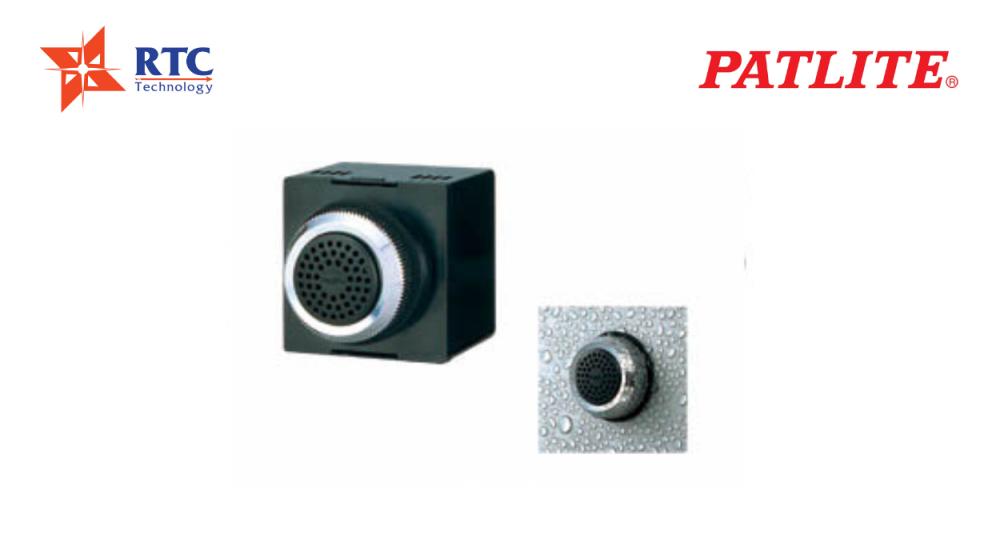

BM 50mm square, 2 buzzers

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features BM

    · Built-in Alarm: Audible sound up to 90dB at 1m.
    · Sound Pattern: Selectable 2 patterns of alarm sound.
    · Body: Compact and light weight (100g).
    · NPN/PNP Compatible: 24V type only.
    · CE Compliant: For 24V AC/DC only

    Model Specifications

    DIMENSIONS - 30mm diameter (front)
    - 50mm square (back)
    RATED VOLTAGE - 24V AC/DC
    - 100V AC
    - 220V AC
    AUDIBLE STYLE - Two selectable, distinctive alarm sounds
    MOUNTING - Panel Mount
    - Indoor Only
    BODY COLOR - Body: Black
    - Mounting Ring: Chrome
    - Panel: ABS Plastic
    VOLUME - Approx. 75dB at 1 meter (24V)
    - Approx. 80dB at 1 meter (120V)
    - Volume is not adjustable
    SOUND STORAGE Two alarm sounds:
    - Rapid, alternating two-tone
    - Rapid, intermittent single tone
    PROTECTION RATING - IP-34
    REMARKS - Dry contact closure such as switches or relay contacts
    - NPN/PNP Compatible for 24V type only
    FUNCTIONS - Sound only plays during contact closure
    - Sound stops when contact is Open
