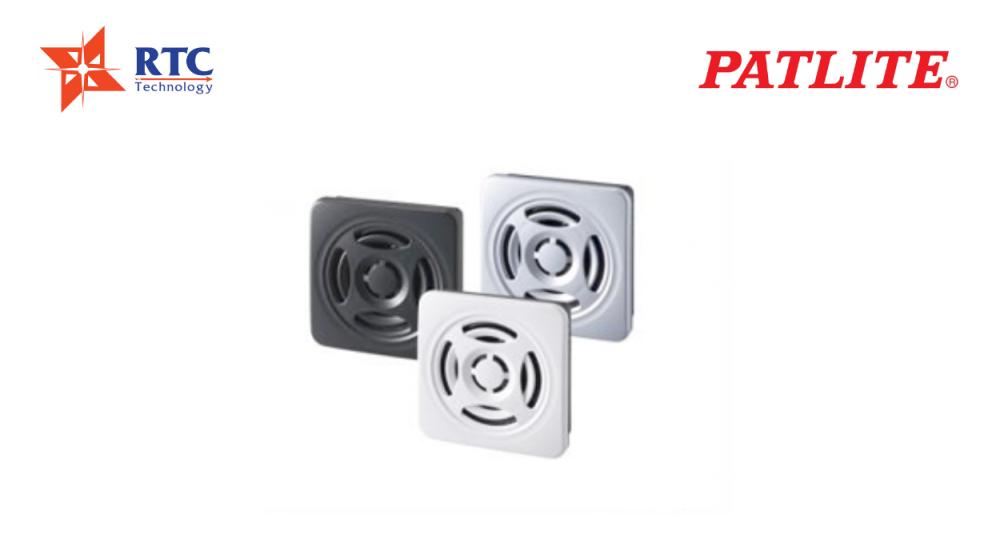

    Product Features BSV

    ・Thin Design
    Our thinnest to match the miniaturization of production line equipment, with a compact design having a depth of only 19.9mm. A maximum sound of 87 dB (at 1m) can be reached with such a thin shape. The volume adjustment is easily accessible from the front panel, and a low power of 3.5W (max.) takes an extra load off the power supply.
    Easy Installation
    With only the need to access it from the front, the cover is easily removable for installation and volume adjustment, which can reduce labor time for maintenance, etc.
    ・Message Rewriting
    The SD card slot, as a standard accessory, allows the rewriting of MP3 data with an SD card. In addition to message rewriting with the exclusive application software, it is possible to change MP3 data file names or rewrite it without the application software.
    ・Extended Playback
    The BSV-L model allows 520 seconds (at a standard bit rate of 64kb/s) of message playback. This added feature can be used for extended messages where details are necessary, or for cases in which a message is done in multi-languages.
    - Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s)
    - Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)

    Movie

    Model Specifications

    RATED VOLTAGE - 12/24V DC
    MOUNTING - Panel mount in the Upright Position
    BODY COLOR - Dark Gray
    - Off White
    - Silver
    VOLUME - Maximum 87dB at 1 meter (For Panel Mount)
    - Maximum 85dB at 1 meter (For Wall Mount)
    SOUND STORAGE - Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s)
    - Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)
    CHANNEL SELECTION - Bit Input: 4
    - Binary Input: 15
    CONFORMITY STANDARDS - CE Marking
    - UL
    - RoHS
    PROTECTION RATING - Panel Mount: IP54 (Upright Only)
    - Wall Mount: IP20
    FUNCTIONS - Normal Playback
    - Hold Playback
    - Priority Input Playback
    - Memory Playback
    REMARKS - PNP Transistor
    - NPN Transistor
    OPTIONS - Playlist Editor 2 (Free Software Version)
    - SDV-2GP: SD Card (for mp3 file transfer and storage)
