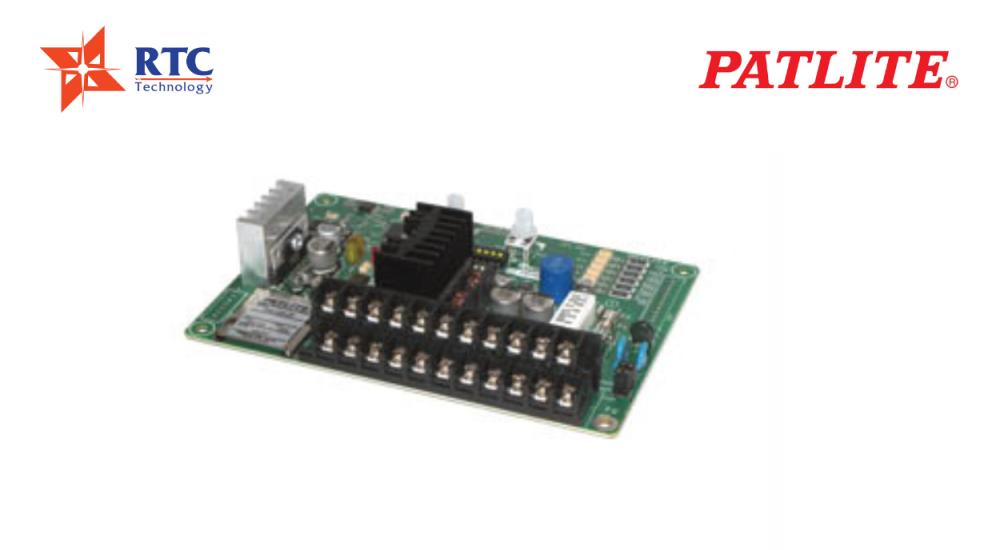

FV-127JP MP3 File Playback Circuit Board

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features FV-127JP


    · MP3 compressed audio file format enables long playback time and high quality sound.
    · Approx. 8 minute long audio message data can be stored in an internal memory.
    · 240 minute long playback is possible when SD card is used as an external memory. (MP3 data at 64kbits/s with 2GB SD card) Extraction and overwriting the audio messages
    · Audio messages can be reprogrammed and overwritten easily with the playlist editor (included) and optional SD card. Also, the audio message data stored in the device can be extracted to SD card. 3 level volume reduction function
    · Volume can be reduced at 3 levels by external signal input.
    (-10dB, -20dB, -30dB at 1m) Various playback modes
    · 5 playback modes are available. Highly reliable operation
    · Duration of input loading can be selected. (10 or 50msec)
    · Extending the duration of input loading enhances the noise resistance.
    · Countermeasure against noise can be taken according to usage environment by noise countermeasure pin setting. Other features
    · Terminal block provides safe and secure wire connections.
    · Speaker output (2W or 4W selectable), AUX output and BUSY output equipped.
    · Rated voltage: 24V DC (Operating voltage range: 19 to 29V DC)

    Model Specifications

    RATED VOLTAGE - 24V DC
    AUDIBLE STYLE - MP3
    SOUND STORAGE - Sound Pattern : 127 messages in 480 seconds
    CHANNEL SELECTION - Dip switch setting can also select Binary Input Mode
    CONFORMITY STANDARDS - RoHS
    - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
    OPTIONS - SPL-5E
