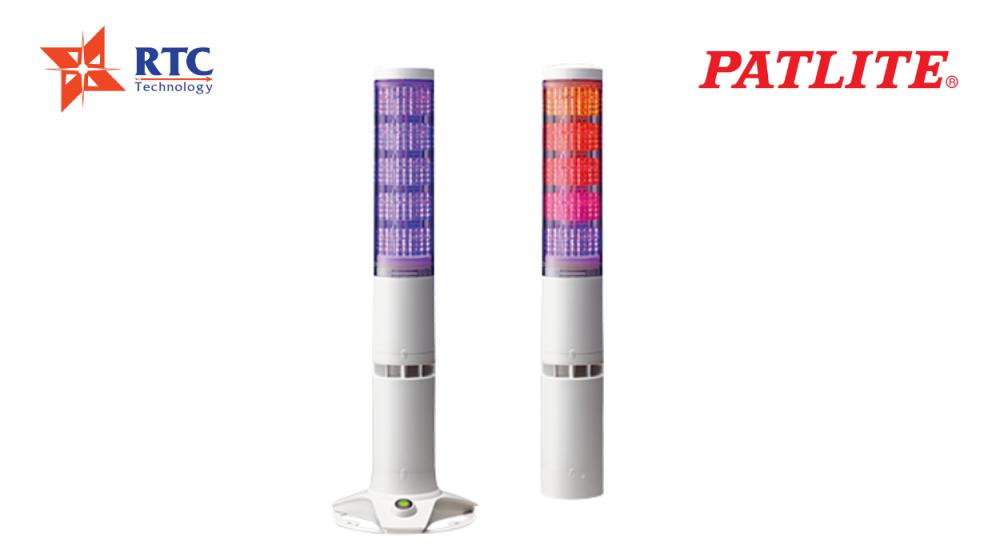

[ LAN ] [ PoE ] LA6-POE Ethernet Programmable LED Signal Tower with PoE
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Product Features
Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation
-
Supports Modbus TCP/IP and HTTP protocols to work seamlessly with your existing infrastructure
-
Built-in web interface for quick and easy setup and configuration
-
Includes 21 programmable LED colors and 11 selectable alarms for unambiguous indication
-
Features a mirroring function for replicating the visual and audible statuses from a master LA6-POE on up to 8 remote slave LA6-POE
-
Built-in terminal block as an alternative control method
Model Specifications
DIMENSIONS
|
- 60mm Diameter |
OPERATING VOLTAGES |
- 24V DC
- Power over Ethernet (PoE): 48V DC |
Controls |
- Wire inputs (4 digital inputs)
- Network commands
- HTTP
- Modbus TCP
- Socket (PNS, PHN - PATLITE developed protocols) |
BODY STYLE |
TN: Direct Mount Type
SN: Stationary Type |
BODY COLOR |
- Off-white
- Silver (America only) |
STACKABLE TIERS |
- 5 Module |
MODULE COLORS |
21 colors |
AUDIBLE STYLE |
- 11 Alarm sounds available |
Volume |
- Max 85dBVolume
- Adjustable up to Max 85dB |
CONFORMITY STANDARDS |
- EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC |
PROTECTION RATING |
- IP54 (IEC 60529) |
