Product Features
· PATLITE's large prism cut lens: For enhanced downward illumination
(cut lens: Φ100mm x 60mm high).
· Newly developed triple-reflection system: For enhanced visibility and low power consumption.
· Lighting Pattern: Flashing and continuous.
· FB type: Built-in buzzer with volume up to 85dB at 1m.
· Installation: Direct mount.
· Interchangeable Modules: No re-wiring even after installation.
· Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light
transmission.
· NPN/PNP compatible: 24V DC type; 100/220V AC compatible with NPN only.
· CE Compliance: 24V AC/DC type ONLY.
· Available Colors: Red, Amber, Green, Blue and Clear/White

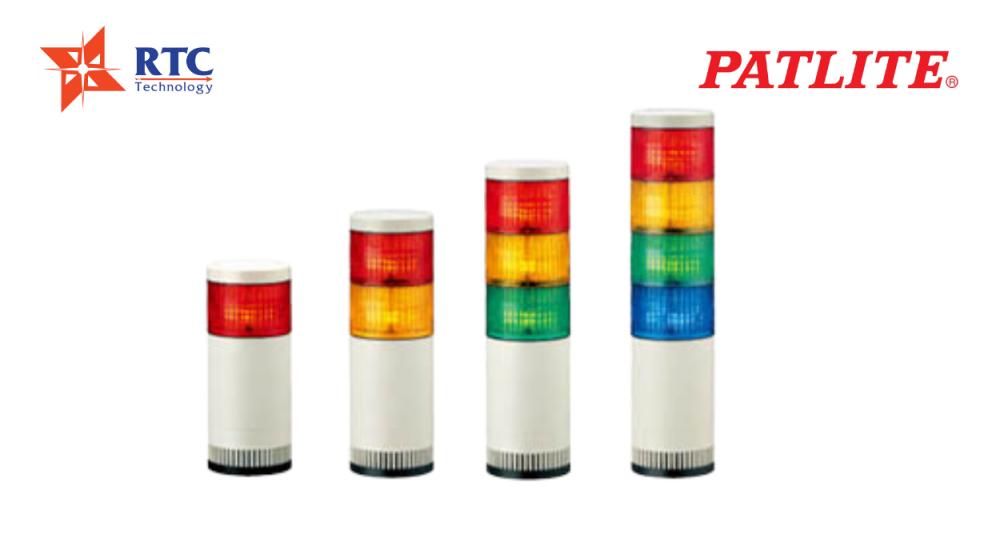

Specifications LGE 100mm Large Signal Tower
|
Dimensions |
Φ100mm |
|
Rated Voltage |
24V DC
100V AC
220V AC |
|
Functions |
Continuous Only
Continuous, Flashing, Alarms |
|
Mounting |
Component style, pre-wired
Interchangeable and stackable modules after purchase |
|
Body Color |
Light Gray |
|
Body Style |
Up to 4 modules can be stacked |
|
Module Colors |
Red
Amber
Green
Blue
Clear |
|
Audible Style |
Selectable two-tone alarm, 85dB (at 1m) |
|
Conformity Standards |
CE Marking |
|
Protection Rating |
IP54 |
