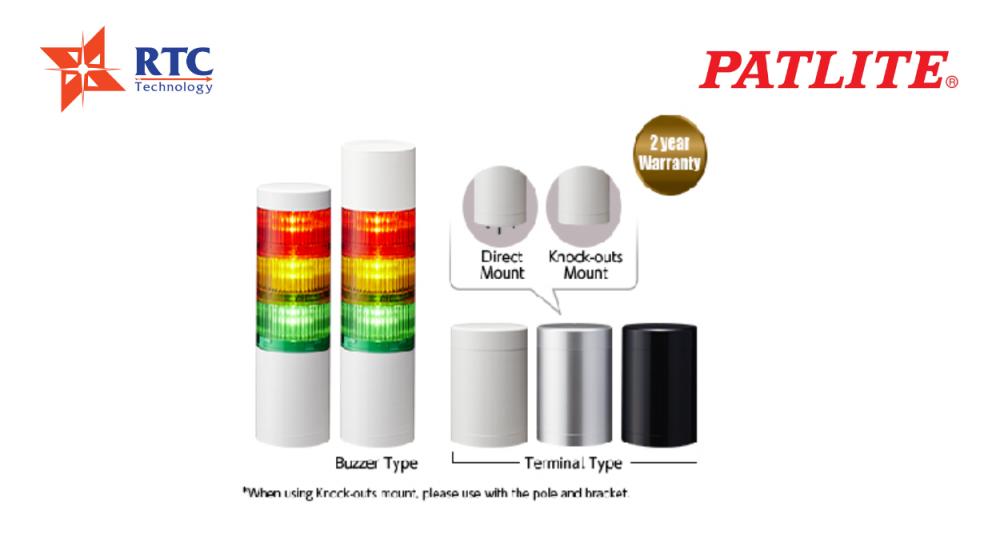

LR7 Series 70mm LED Signal Tower Lights
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
Rated voltage: DC24V.
Standard body color: Off-white. Silver and black bodies available as components only.
Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT) . Click here for more details.
Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
Specifications
Operating Ambient Temperature
-20℃ - +50℃
Operating Humidity Range
90% RH or less, no condensation
Storage Temperature Range
-30℃ - +60℃
Storage Humidity Range
90% RH or less, no condensation
Mounting Location
Indoor Use
Mounting Direction
Upright Position
Protection Rating*1
IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions
Upright Position
Insulation Resistance
More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage
AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate
60 ±2 Flashes / min
Sound Level
LR6 Typ. 88dB
Sound Reduction*2
ab. -10dB reduction
Environmental Conditions
Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound
4 patterns*2 No.1 Rapid Intermittent sound No.2 Continuous sound No.3 Rapid Hi-low No.4 Sweep sound
Transistor Output
NPN / PNP
Conformity Standards
●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
LED Unit Specifications
Color
Red
Amber
Green
Blue
White
Current Consumption / Power Consumption
Typ.
0.04A/1W
Max.
0.045A/1.3W
Buzzer Unit Specifications
Current Consumption / Power Consumption
Typ.
0.04A/1W
Max.
0.3A/1.3W
