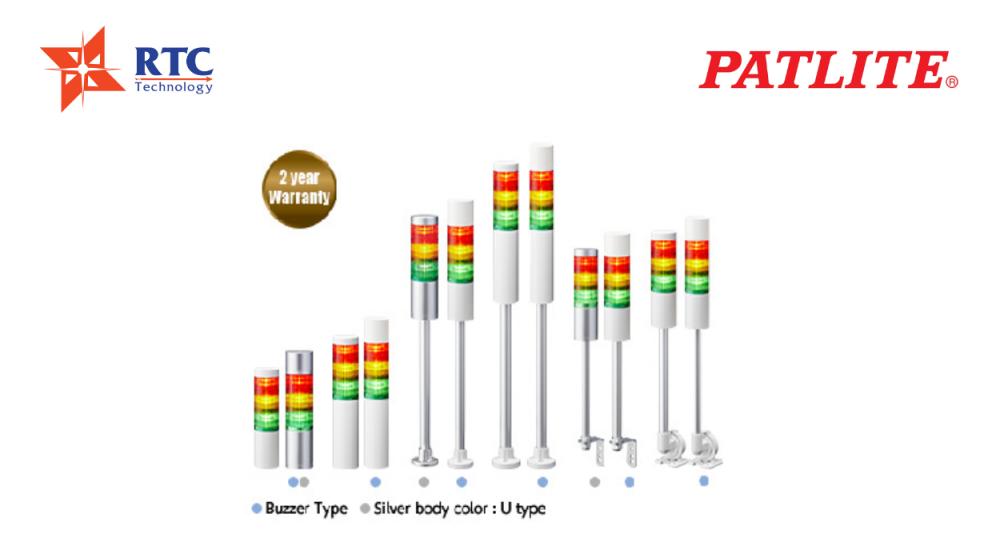

LR4 Series 40mm LED Signal Tower Lights

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.

Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)

A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.

A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.

Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).

Operating Ambient Temperature	-20℃ - +50℃
Operating Humidity Range	90% RH or less, no condensation
Storage Temperature Range	-30℃ - +60℃
Storage Humidity Range	90% RH or less, no condensation
Mounting Location	Indoor Use
Mounting Direction	Upright Position
Protection Rating*1	IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions	Upright Position
Insulation Resistance	More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage	AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate	60 ±2 Flashes / min
Sound Level	LR4Typ. 85dB
Sound Reduction*2	ab. -10dB reduction
Environmental Conditions	Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound	4 patterns*2 No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
Transistor Output	NPN / PNP (AC100 - 240V is NPN only)
Conformity Standards	●UL 508, CSA-C22.2 No.14 ●FCC Part 15 Subpart B Class A ●RoHS Directive (EN IEC 63000) ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●KC (KN 61000-6-4, KN 61000-6-2)3 ●Low-voltage Directive (IEC/EN 60947-5-1, EN62471)4
