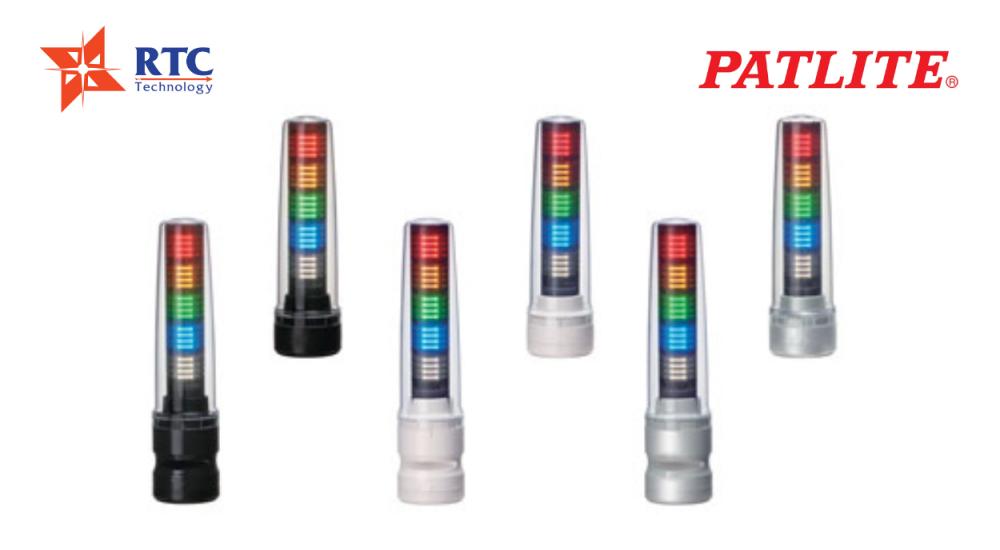

LS7 70mm LED Signal Tower
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Product Features LS7
-
Smooth body, non-metallic enclosure for efficient water and dust runoff
-
Highly-efficient, unambiguous visual signaling
-
Lens cover is constructed from shock-resistant polycarbonate
-
Buzzer tones are specially designed to be heard above machine noise
-
M12 connector for quick and easy installation
-
Brackets available in all ABS plastic
Specifications
Dimensions |
Φ70mm |
Rated Voltage |
24V DC |
Mounting |
Platform Bracket
- SZ-100 (Off-white)
- SZ-100-D (Dark Gray)
- SZ-100-S (Silver)
Wall Mounting Bracket
- SZ-110 (Off-white)
- SZ-110-D (Dark Gray)
- SZ-110-S (Silver) |
Body Color |
Off-white
Dark Gray
Silver |
Body Style |
H-type : Pre-assembled, pre-wired
C-type : M12 Connector |
Stackable Tiers |
3 or 5 LED color segments |
Module Colors |
Red
Amber
Green
Blue
Clear/White |
Audible Style |
Buzzer 1:
- Lead Wire Type (Intermittent beep1)
- M12 Connector Type (Continuous Beep) 82dB (at 1m)
Buzzer 2:
- Lead Wire Type (Intermittent beep2)
- M12 Connector Type (None) 85dB (at 1m) |
Conformity Standards |
CE Marking (24V only)
UL Component Recognition (US)
c-UL Component Recognition (Canada)
RoHS |
Protection Rating |
IP65 (Illumination Type)
IP54 (Buzzer Type) |
