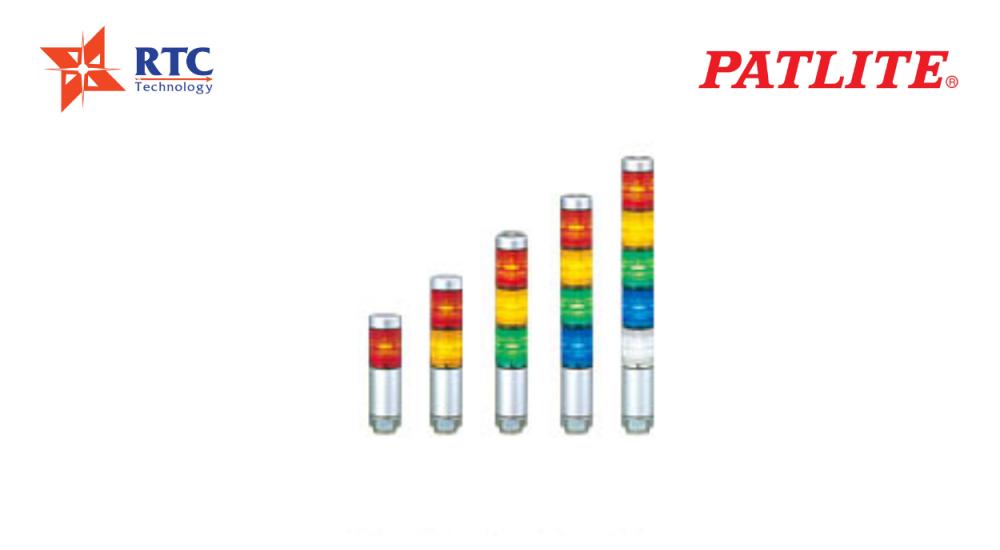

MP 30mm LED Signal Tower

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features MP




    • Rearrange LED modules without having to rewire

    • Double insulation for enhanced durability and safety

    • Heat resistant ABS resin for superior impact resistance

    • IP65 water and dust resistance

    • NPN/PNP open-collector

    • CompaM12 quick disconnect and a single drill hole configuration for easy installation (MP-C only)











    Specifications

    Dimensions Φ30mm
    Rated Voltage 24V AC/DC
    Functions Continuous Only
    Dry contact closure such as switches or relay contacts
    Open-collector transistor (NPN or PNP) for 24V DC
    Direct voltage control
    Mounting Direct mount only: includes M22 mounting nut and sealing gasket
    Body Color Silver
    Body Style Pre-assembled, pre-wired
    Interchangeable and stackable module after purchase
    Stackable Tiers Up to 5 modules can be stacked
    Module Colors Red
    Amber
    Green
    Blue
    Clear/White
    Conformity Standards CE Marking
    UL Recognized Component (US)
    c-UL Recognized Component (Canada)
    RoHS
    Protection Rating IP65
