Model |
Model |
MV-CB016-10GM |
|
Type |

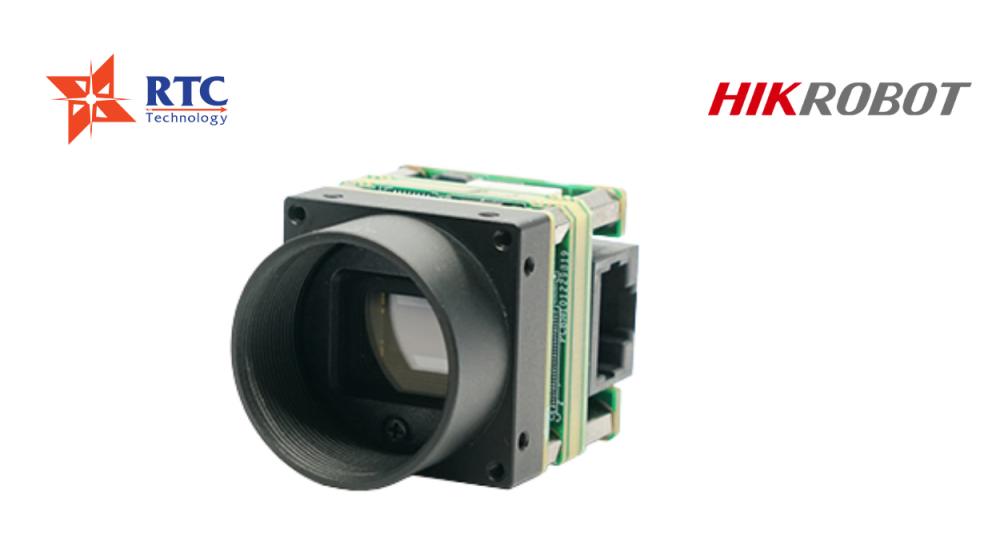

1.6 MP 1/2.9" CMOS GigE Board Level Camera |
|
Camera |
Sensor type |
CMOS, global shutter |
|
Sensor |
IMX296 |
|
Pixel Size |
3.45 μm × 3.45 μm |
|
Sensor Size |
1/2.9" |
|
Resolution |
1440 × 1080 |
|
Max. Frame Rate |
65.2 fps |
|
Dynamic Range |
74 dB |
|
SNR |
41 dB |
|
Gain |
0 dB to 24 dB |
|
Exposure Time |
UltraShort exposure mode: 1 μs to 14 μs
Standard exposure mode: 15 μs to 10 sec |
|
Exposure mode |
Off/Once/Continuous exposure mode |
|
Mono/Color |
Mono |
|
Pixel format |
Mono 8/10/10p/12/12p |
|
Binning |
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|
Decimation |
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|
Reverse image |
Supports horizontal and vertical reverse image output |
|
Electrical features |
Data Interface |
GigE |
|
Digital I/O |
6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
|
Power Supply |
9 VDC to 24 VDC, supports PoE |
|
Power consumption |
Typ. 2.6 W@12 VDC |
|
Mechanical |
Lens mount |
C-mount |
|
Dimension |
29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
|
Weight |
Approx. 45 g (0.1 lb.) |
|
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
Humidity |
20% to 80% RH, non-condensing |
|
General |
Software |
MVS or third-party software meeting with GigE Vision Protocol |
|
Operating System |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|
Compliance |
GigE Vision V2.0, GenICam |
|
Certification |
CE, FCC, RoHS, KC |
