*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Product Model
MV-CB120-10UM-B
Type

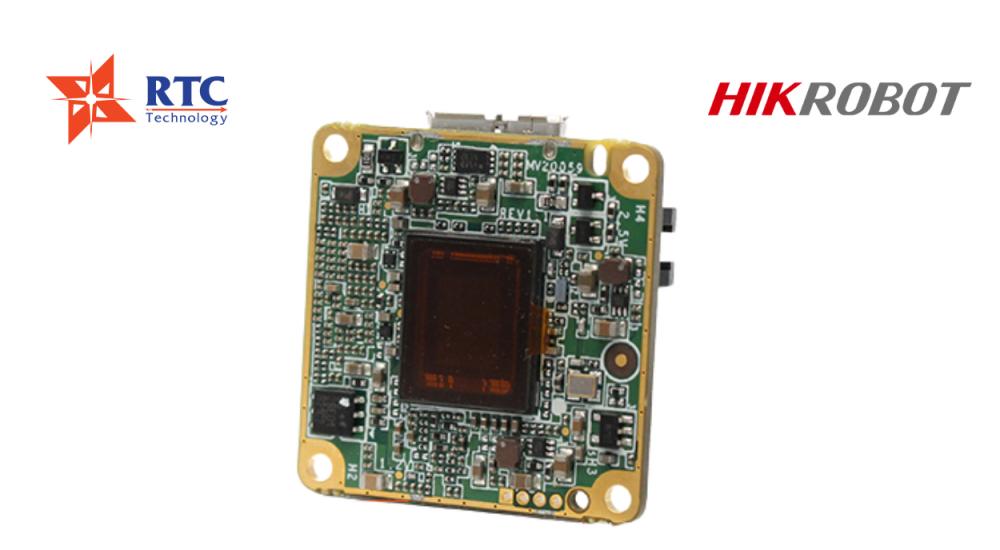

12 MP 1/1.7" CMOS USB3.0 Board Level Camera
Camera
Sensor Type
CMOS, rolling shutter
Sensor
IMX226
Pixel Size
1.85µm × 1.85µm
Sensor Size
1/1.7"
Resolution
4032 × 3036
Max. Frame Rate
28 fps
Dynamic Range
70.5 dB
SNR
40.5 dB
Gain
0dB to 20dB
Exposure Time
11μs to 2s
Exposure mode
Off/ Once /Continuous exposure mode, and Global Reset
Mono/Color
Mono
Pixel Format
Mono 8/10/10p/12/12p
Binning
Not support
Decimation
Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
Reverse
Supports horizontal and vertical reverse image output
Electrical features
Data Interface
USB3.0
Digital I/O
Bi-directional non-isolated I/O x 2 (Line 1, Line 2)
Power Supply
USB3.0 power supply
Power Consumption
< 2.45W@5VDC
Mechanical
Dimension
32.5 mm x 32.5 mm x 1.6 mm (1.3" x 1.3" x 0.1")
Weight
Approx. 10g (0.02lb.)
Lens mount
None
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 80% RH, without condensation
General
Client Software
MVS or third-party software with USB3 Vision Protocol
