Model |
Name |

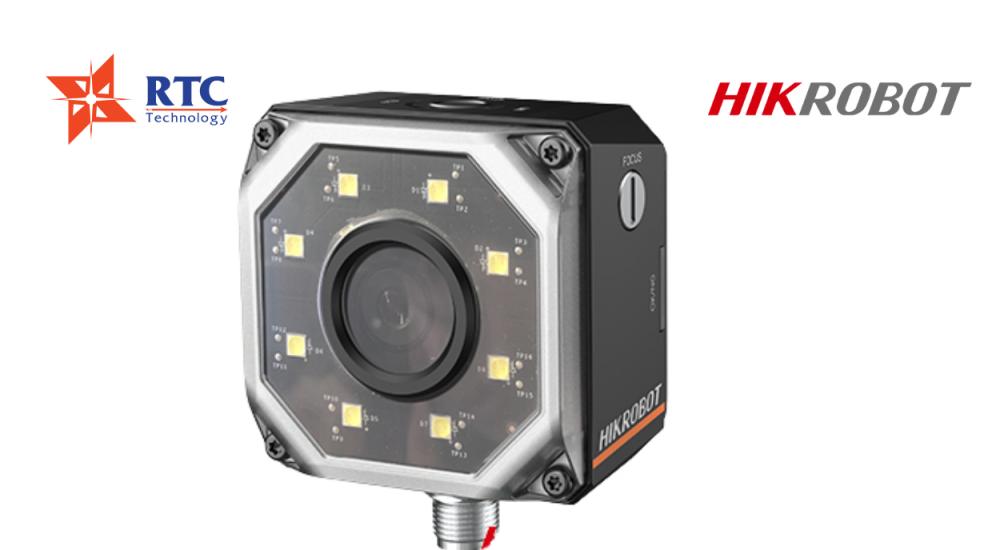

1.6 MP Smart Code Reader |
Type |
MV-ID3016M-15S-WBN |
Performance |
Symbologies |
1-dimensional code: Code 128, Code 39 2-dimensional code: QR, DM |
Max. Frame Rate |
20 fps |
Max. Reading Speed |
60 codes/s |
Sensor type |
CMOS, global shutter |
Pixel size |
3.45 µm x 3.45 µm |
Sensor size |
1/2.9" |
Resolution |
1408 × 1024 |
Exposure time |
16 μs to 1 s |
Gain |
0 dB to 40 dB |
Mono/color |
Mono |
Communication protocol |
SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet |
Electrical features |
Interface |
17-pin M12 interface provides power, Ethernet, digital IO, and serial port |
Ethernet |
Fast Ethernet |
Digital IO |
Non-isolated input x 3 (LineIn 0/1/2), non-isolated output x 3 ( LineOut 0/1/2), RS-232 x 1. Device trigger via pressing button on top supported. |
Power supply |
12 VDC to 24 VDC |
Max. power consumption |
< 19.8 W@24 VDC |
Mechanical |
Lens Focal Length |
14.8 mm (0.6") |
Lens mount |
M12-mount, manual focus supported |
Lens cap |
Transparent lens cap. Polarization lens cap is optional |
Light source |
Spotlight white light. Spotlight red or blue, wide-angle white or blue light is optional |
Indicator |
Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
Dimension |
65.2 mm x 65.2 mm x 42 mm (2.6" x 2.6" x 1.7") |
Weight |
Approx. 240 g (0.5 lb.) |
Ingress protection |
IP67 (under proper installation of waterproof lens cap) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, without condensation |
General |
Client software |
IDMVS |
