Model |
Name |

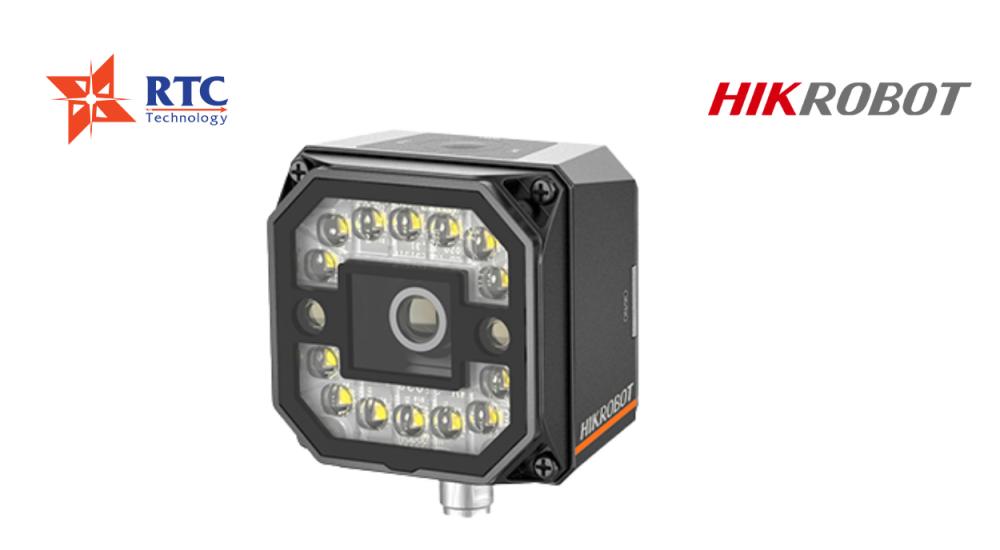

4.2 MP Smart Code Reader |
Type |
MV-ID3050PM-12MWBN |
Performance |
Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25
2-dimensional codes: QR Code, Data Matrix
Stack codes: PDF 417 |
Max. Frame Rate |
30 fps |
Max. Reading Speed |
60 codes/s |
Sensor type |
CMOS, global shutter |
Pixel size |
3.2 µm × 3.2 µm |
Sensor size |
1/1.7" |
Resolution |
2368 × 1760 |
Exposure time |
60 μs to 1 sec |
Gain |
0 dB to 18 dB |
Mono/Color |
Mono |
Communication protocol |
SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
Electrical features |
Data interface |
Fast Ethernet |
Digital IO |
Non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported. |
Power supply |
24 VDC |
Power consumption |
Approx. 47.5 W@24 VDC (light source enabled) |
Mechanical |
Lens Focal Length |
12 mm (0.5") |
Lens mount |
M12-mount, mechanical autofocus supported. |
Lens cap |
Half polarized front cover by default. Polarized and transparent ones are optional. |
Light source |
White light by default. Red/blue/IR light is optional. |
Indicator |
Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
Dimension |
65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
Weight |
Approx. 280 g (0.6 lb.) |
Ingress protection |
IP67 (under proper installation of waterproof lens cap) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, non-condensing |
General |
Client software |
IDMVS |
Certifications |
CE, FCC, RoHS, KC |
