*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Product Model

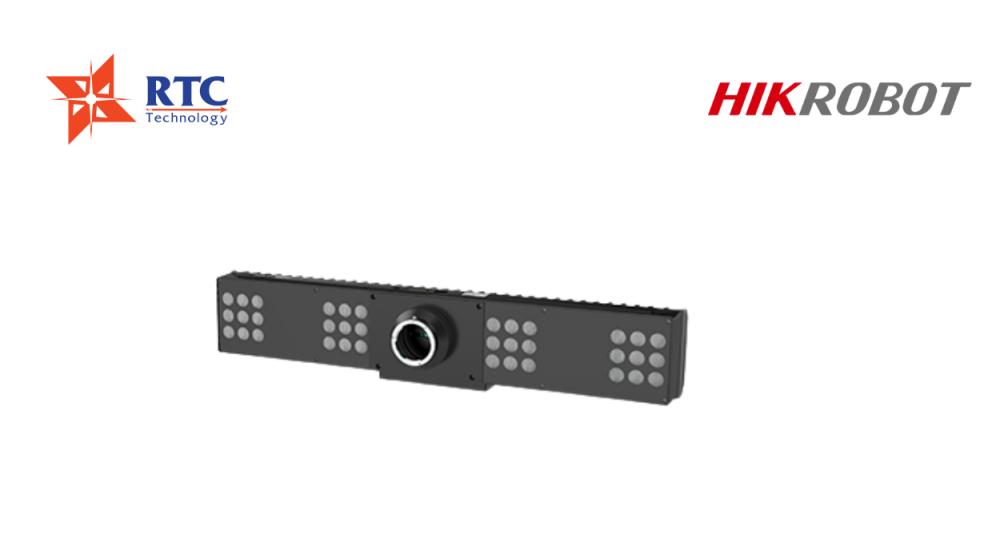

MV-ID7080EM-35F-WHA
Type
ID7000 Series Smart Code Reader
Performance
Symbologies
1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN
2-dimensional codes: QR Code, Data Matrix
Max. line frequency
15 kHz
Max. operating speed of conveyer belt
2.5 m/sec
Resolution
8K
Focal length
35 mm (1.4")
Best working distance
1000 mm (39.4")
Field of view (range)
1000 mm @10 mil
Mono/color
Mono
Communication protocol
SmartSDK, TCP, Serial, FTP, HTTP
Electrical features
Data interface
GigE
Digital I/O
10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, optoisolated input (LineIn 1) × 1, opto-isolated output (LineOut 0/1) × 2, and RS-232 × 1.
Power supply
48 VDC
Max. power consumption
180 W@48 VDC
Mechanical
Lens mount
F-mount, flange back focal length 46.5 mm (1.8")
Dimension
608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6")
Weight
Approx. 5 kg (11.0 lb.)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
