Model |
Product Model |

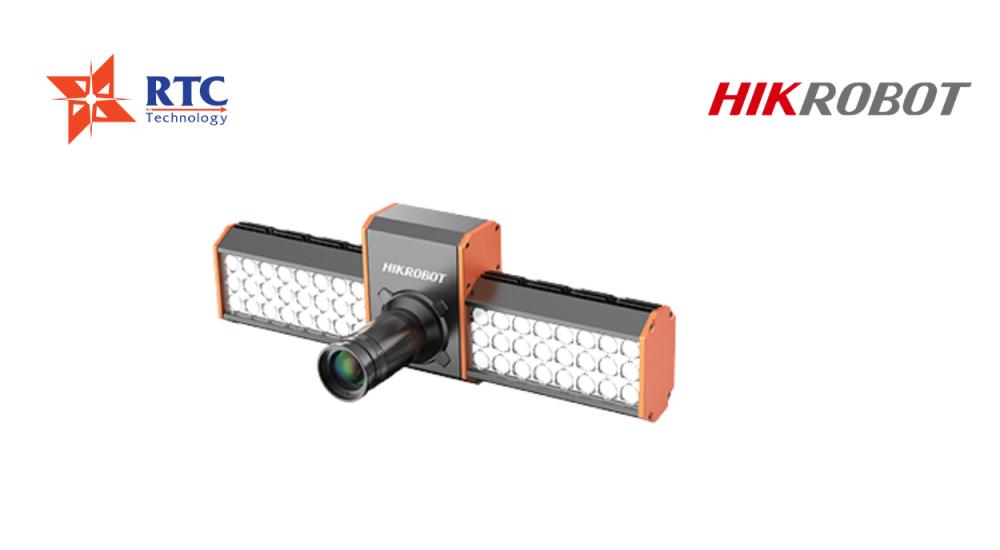

MV-ID7080M-35F-WHA |
Type |
ID7000 Series Smart Code Reader |
Performance |
Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN
2-dimensional codes: QR Code, Data Matrix |
Max. line frequency |
15 kHz |
Max. operating speed of conveyer belt |
2.5 m/sec |
Resolution |
8K |
Focal length |
35 mm (1.4") |
Best working distance |
1000 mm (39.4") |
Field of view (range) |
1200 mm @10 mil |
Mono/color |
Mono |
Communication protocol |
SmartSDK, TCP, Serial, FTP, HTTP |
Electrical features |
Data interface |
GigE |
Digital I/O |
12-pin M12 connector provides I/O, including opto-isolated input (LineIn 0/1/2) × 3,
opto-isolated output (LineOut 0/1) × 2, and RS-232 × 1. |
Power supply |
48 VDC |
Max. power consumption |
190 W@48 VDC |
Mechanical |
Lens mount |
F-mount, flange back focal length 46.5 mm (1.8") |
Dimension |
544 mm × 123.1 mm × 185 mm (21.4" × 4.8" × 7.3") |
Weight |
Approx. 6.5 kg (14.3 lb.) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, non-condensing |
General |
Client software |
IDMVS |
Operating system |
32/64-bit Windows XP/7/10 |
