Model |
Model |

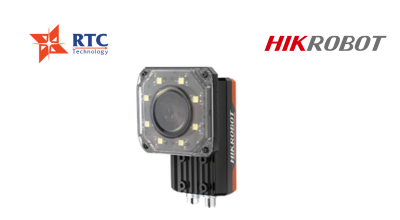

MV-SC7016C-15S-WBN |
Type |
1.6 MP Smart Camera |
Tools |
Vision tool |
Feature matching, fixture, blob, color conversion,deep learning character recognition, deep learning character location, deep learning classification, deep learning object detection, etc. |
Solution capacity |
Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored. |
Communication protocol |
TCP, UDP, serial port, IO, Modbus, PROFINET, Ethernet/IP, and FTP. |
Camera |
Sensor type |
CMOS, global shutter |
Pixel size |
3.45 µm × 3.45 µm |
Sensor size |
1/2.9" |
Resolution |
1440 × 1080 |
Max. Frame Rate |
60 fps |
Dynamic range |
71.4 dB |
SNR |
41 dB |
Gain |
0 dB to 15 dB |
Exposure time |
16 μs to 1 sec |
Pixel format |
Mono 8, RGB |
Mono/Color |
Color |
Platform |
Memory |
4 GB |
Storage |
32 GB |
Electrical features |
Data Interface |
GigE |
Digital I/O |
12-pin M12 connector provides power and I/O, including opto-isolated input (Line 0/1/2) × 3,opto-isolated output (Line 3/4/5) × 3, and RS-232 × 1 |
Power supply |
12 VDC to 24 VDC |
Power consumption |
Approx. 7.5 W@24 VDC (light source is disabled)
Approx. 18 W@24 VDC (light source is enabled) |
Mechanical |
Lens mount |
M12-mount, semi-automatic focus supported |
Focal length |
15 mm (0.6") |
Lens cap |
Transparent lens cap. Polarization lens cap is optional. |
Light source |
White light. Red, blue, or NIR light is optional. |
Indicator |
Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
Dimension |
118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") |
Weight |
Approx. 520 g (1.1 lb.) |
Ingress protection |
IP67 (under proper installation of waterproof lens cap) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, non-condensing |
General |
Client software |
Via web based interface |
Certification |
CE, FCC, KC |
