*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model

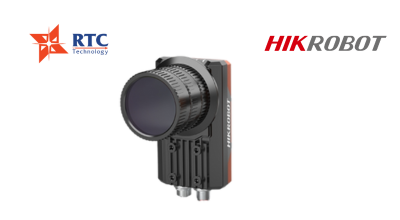

MV-SC7060M-00C-NNN
Type
6.0 MP Smart Camera
Tools
Vision tool
Feature matching, fixture, blob, deep learning character recognition, deep learning character
location, deep learning classification, deep learning object detection, etc.
Solution capacity
Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.
Communication protocol
TCP, UDP, serial port, IO, Modbus, PROFINET, Ethernet/IP, and FTP.
Camera
Sensor type
CMOS, global shutter
Pixel size
2.4 µm × 2.4 µm
Sensor size
1/1.8"
Resolution
3072 × 2048
Max. Frame Rate
30 fps
Dynamic range
71.3 dB
SNR
41.3 dB
Gain
0 dB to 15 dB
Exposure time
16 μs to 1 sec
Pixel format
Mono 8
Mono/Color
Mono
Platform
Memory
4 GB
Storage
32 GB
Electrical features
Data Interface
GigE
Digital I/O
12-pin M12 connector provides power and I/O, including opto-isolated input (Line 0/1/2) × 3,opto-isolated output (Line 3/4/5) × 3, and RS-232 × 1
Power supply
12 VDC to 24 VDC
Power consumption
Approx. 7.5 W@24 VDC
Mechanical
Lens mount
C-mount
Focal length
/
Lens cap
Transparent lens cap
Light source
Not included
Indicator
Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
Dimension
109.5 mm × 64.4 mm × 94 mm (4.3" × 2.5" × 3.7")
Weight
Approx. 470 g (1.0 lb.)
Ingress protection
IP67 (under proper installation of waterproof lens cap)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
