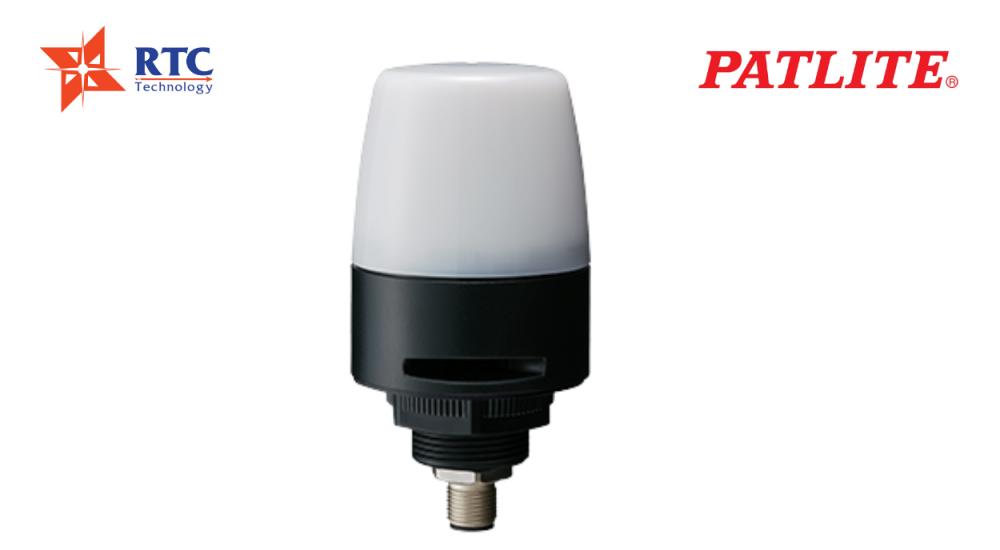

NE-IL IO-Link Signal Beacon

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features




    • Capacitive touch sensor enables real-time status confirmations

    • Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master

    • Features an M12 connection for quick and easy installations

    • Status indicator devices connected to an IO-Link master can be controlled collectively

    • Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime

    • Up to 7 colors can be emitted to indicate different equipment conditions

    • High protection rating for operation in harsh environments

    • Frosted lens displays evenly distributed light for unambiguous indication

    • Click here for an IO-Link connection guide with OMRON Corporation "NX Series IO-Link Master Unit"
      （Please contact OMRON Corporation for inquiries regarding this document）








    Model Specifications

     Model NE-ILNN-M


         		 NE-ILNB-M

    With buzzer
    　    		 NE-ILTN-M

    With touch
    sensor    		 NE-ILTB-M

    With buzzer
    and touch sensor    		 NE-ILXB-M

    With buzzer, touch sensor,
    and digital / analog input
    Size φ56mm
    Rated Voltage 24V DC
    Mounting Location/ Mounting Direction Indoors, Upright
    Protection Rating IP65　NEMA　TYPE　４X, 13
    LED Color Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan)
    LED Unit Modes Continuous / Flashing
    Sound Pressure － Typ. 88 dB
    [8 sound types (Selectable)]    		 － Typ. 88 dB
    [8 sound types (Selectable)]
    Conformity Standards ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581)
    ●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A
    ● KC (KN 61000-6-4, KN 61000-6-2)
    Connection M12 connector 5 pins A code M12 connector 8 pins A code







    Model Number Configuration
