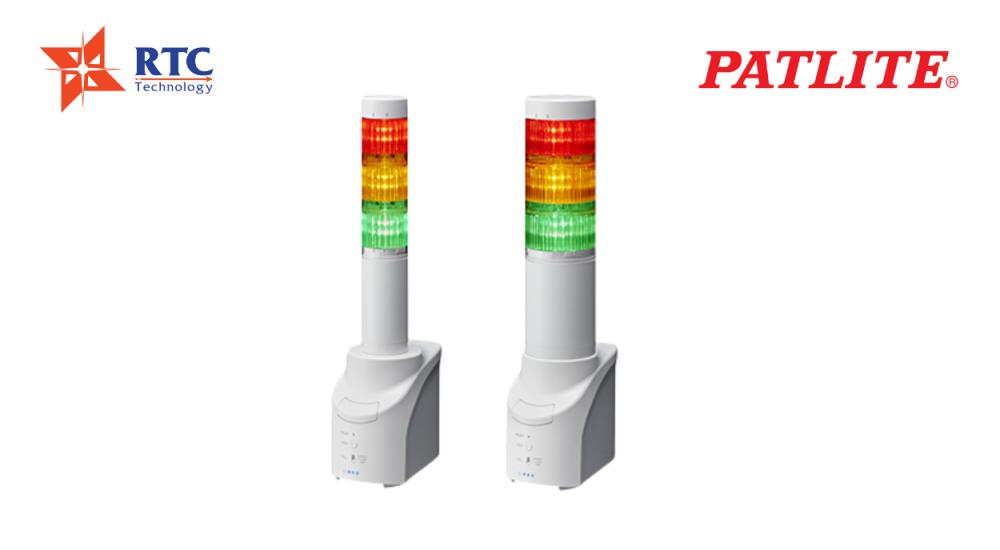

NHL-3FB2/NHP-3FB2 Network Monitor Signal Tower

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.



    Product Features



    【Quicker Response】
    • Ping up to 24 devices and notify operators of ping failures in real-time with unambiguous visual and audible alerts.
    【Know You're Connected】
    • The green LED unit can be configured to indicate the NHL's connection to your network.
    【Customizable to Fit Your Application】
    • Standard configuration consists of a light tower with three LED segments and a programmable audible alarm with volume settings. Add up to 5 LED units for highly effective visual signaling.
    【Email Notifications】
    • Alarms can trigger emails to be sent to up to 8 addresses per event so you will never miss a network signal.
    【Protocol Support】
    • The NHL supports SNMP, HTTP, PNS (Developed by PATLITE), Socket Transmission command protocols. Alarms can send SNMP traps to network management systems.





    Model Specifications

    DIMENSIONS Tower diameter: 60mm (NHL), 40mm (NHP)
    OPERATING VOLTAGES 24V DC (AC Adaptor 100V AC ~ 240V AC)
    PROTOCOLS ・Physical Layer: 10 BASE-T/100 BASE-TX
    ・Data Link Layer: CSMA/CD
    ・Network Layer: IP/ICMP/ARP
    ・Transport Layer: TCP/UDP
    ・Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
    FUNCTIONS ・Ping Device Monitor
    ・RSH Command
    ・SNMP v1・v2
    ・Self-diagnosis
    ・Application Monitor
    ・SOCKET
    ・ E-mail Transmission
    BODY STYLE ・Interface Converter Base: Off-white
    ・Tower: Off White
    STACKABLE TIERS ・3 tiers only
    MODULE COLORS ・LED source Color: Red / Amber / Green
    ・Lens Color: clear Lens
    AUDIBLE STYLE ・Alarm 1: selectable, Slow Intermittent
    ・Alarm 2: selectable, Fast Intermittent
    ・Alarm 3: Fast Burst
    ・Alarm 4: Continuous
    CONFORMITY STANDARDS ・RoHS Directive (EN 50581)
    ・EMC Directive (EN 55032, EN 55024)
    ・FCC Part15 Subpart B Class B, ICES-003 Class B
    ・UL 1638, UL 464 CSA C22.2 No.205
    ・KC (KN 61000-6-2, KN 61000-6-4)*1
    ・PSE Compliant AC Adaptor

    *1:Only N type and W type
     CE Marking
     UL/cUL Listed
     W type is an international model.
