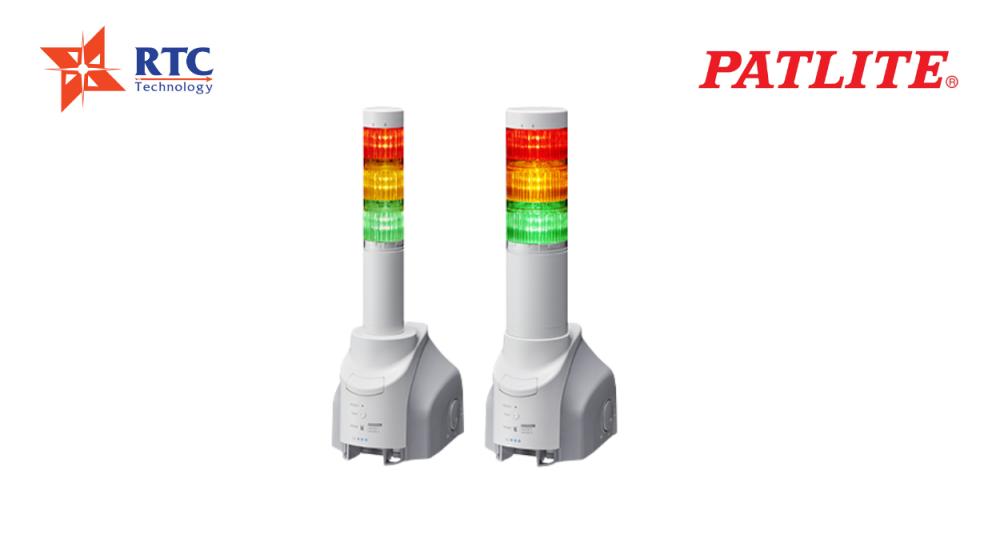

NHL-3FV2/NHP-3FV2 Network Monitor Signal Tower with MP3

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Product Features

【Give Your Equipment a Voice】

Alleviate alarm fatigue by utilizing the built-in MP3 voice annunciator feature. This feature allows you to load custom voice recordings to allow the NHL to tell your operators exactly what is happening on your network.

【Quicker Response】

Ping up to 24 devices and notify operators of ping failures in real-time with unambiguous visual and audible alerts.

【Know You're Connected】

The green LED unit can be configured to indicate the connection status between the NHL and your network.

【Customizable to Fit Your Application】

Standard configuration consists of a light tower with three LED segments and a programmable audible alarm with volume settings. Add up to 5 LED units for highly effective visual signaling.

【Email Notifications】

Alarms can trigger emails to be sent to up to 8 addresses per event so you will never miss a network signal.

【Protocol Support】

The NHL supports SNMP, HTTP, PNS (Developed by PATLITE), Socket Transmission command protocols. Alarms can send SNMP traps to network management systems.

Model Specifications

DIMENSIONS	Tower diameter : 60mm (NHL), 40mm (NHP)
OPERATING VOLTAGES	24V DC (AC Adaptor 100V AC ~ 240V AC)
PROTOCOLS	・Physical Layer : 10 BASE-T/100 BASE-TX ・Data Link Layer : CSMA/CD ・Network Layer : IP/ICMP/B6 ・Transport Layer : TCP/UDP ・Application Layer : HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP/SLMP
FUNCTIONS	・Ping Device Monitor ・RSH Command ・SNMP v1・v2C ・Application Monitor ・SOCKET ・ E-mail Transmission ・Line Out ・Easy Access Volume Control ・Preset Sound : Buzzer ; 4 Selections Chime ; 3 Selections Message ; 3 Selections
BODY STYLE	【Interface converter】・Low profile steel casing ・Bumper pads installed to protect surface finish 【Tower】・Pre-assembled, mounted to converter base ・LED modules are interchangeable
BODY COLOR	・Interface Converter Base : Off-white ・Tower : Off White
STACKABLE TIERS	Up to 5 LED units
MODULE COLORS	・LED source Color : Red / Amber / Green ・Lens Color : clear Lens
AUDIBLE STYLE	・Audio File Formal : MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz ・Bite Rate : 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only ・Number of Playback Messages : USB Memory Transfer Package : 30 kinds Web Setup Tool Registrations : 30 kinds Preset Registrations : 10 kinds
CONFORMITY STANDARDS	・RoHS Directive (EN 50581) ・EMC Directive (EN 55032, EN 55024) ・FCC Part15 Subpart B Class A, ICES-003 Class A ・UL 1638, UL 464 CSA C22.2 No.205 ・KC (KN 61000-6-2, KN 61000-6-4)1 ・PSE Compliant AC Adaptor 1：Only N type and W type CE Marking UL/cUL Listed W type is an intemational model.
