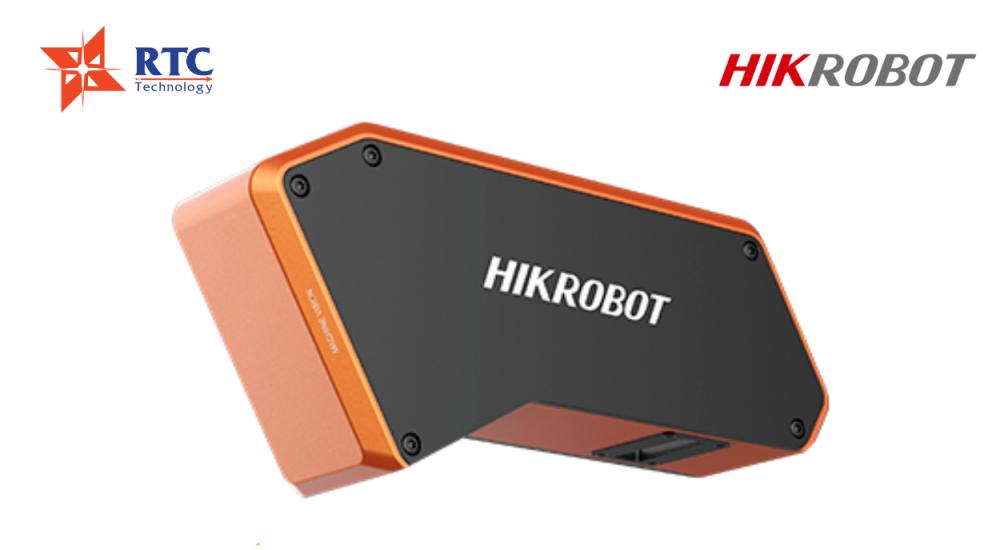

MV-DP090-02B
Hình thức vận chuyển:
- Miễn phí lắp đặt và tư vấn kỹ thuật
- Miễn phí vận chuyển trong phạm vi 200km
- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.
Địa chỉ mua hàng
CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)
Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam
Điện thoại: 024 6654 6858
Mobile: +84 979 639 438
Email: info@rtc.edu.vn
Thời gian làm việc: 08h00′ – 17h30′.
Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.
Features
-
Integrated high-precision image processing algorithms
-
Precise calibration before leaving the factory, easy to use
-
Support depth data, 3D point cloud data output
-
Convenient secondary development
-
Rich I/O interface, compatible with multiple trigger modes
-
Gigabit Ethernet real-time transmission
Order model: MV-DP090-02B
Dimensions
*The data involved in the product may vary due to factors such as the environment, and the company does not bear the consequences arising therefrom.
model |
model |
MV-DP090-02B |
name |
3D laser profile sensor, working range 106.5-250mm, scanning rate 60-1000Hz, Z-axis repeatability 3um |
performance |
Single contour points |
1920 |
near field |
80mm |
far field of view |
153 mm |
Clear Distance (CD) |
106.5 mm |
Measuring range (MR) |
143.5mm |
Resolution (X-axis) |
42 ~ 80 µm |
Resolution (Z axis) |
13 ~ 47 µm |
Repeatability (Z axis) |
3 µm@ sensor test data of standard gauge blocks on optical table |
scanning frequency |
60 ~ 1000 Hz |
type of data |
Original map, depth map, contour data, brightness map |
trigger mode |
Soft trigger, external trigger, differential encoder trigger |
Laser Safety Level |
Class3R |
Laser wavelength |
450nm |
Electrical Characteristics |
Data interface |
GigE |
Digital I/O |
12-pin M12 interface provides power supply and I/O, 2 differential signal inputs (Line2, Line3), 1 isolated input (Line0), 1 isolated output (Line1), 1 RS-232 |
powered by |
12 VDC, above 1A |
Typical power consumption |
10W@12VDC |
structure |
Dimensions |
202.3mm×48mm×93.5mm |
weight |
about 900 g |
temperature |
Operating temperature 0 ~ 45°C, storage temperature -30 ~ 80°C |
humidity |
20%~85%RH without condensation |
General Specifications |
software |
3DMVS |
operating system |
Windows XP/7/10 32/64bits |
