model |
model |

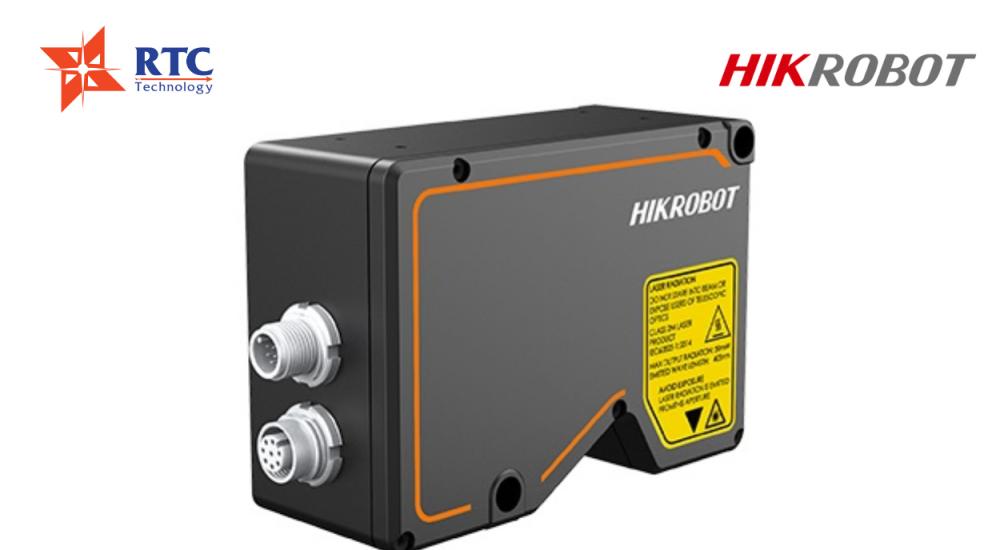

MV-DP2305-01H |
name |
3D laser profile sensor, working range 50.5-75.5mm, scanning rate 700-10000Hz, Z-axis repeatability 0.4um |
performance |
Single contour points |
2048 |
near field |
25.2 mm |
far field of view |
34.4 mm |
Clear Distance (CD) |
50.5mm |
Measuring range (MR) |
25mm |
Linearity (±% of MR) |
0.01 |
Resolution (X-axis) |
12.3 ~ 16.8 µm |
Resolution (Z axis) |
1.8 ~ 3.0 µm |
Repeatability (Z axis) |
0.4 µm@ sensor test data of standard gauge block on optical table |
scanning frequency |
700 Hz (at maximum measuring range), up to 10 KHz |
type of data |
Raw map, depth map, contour data, brightness map |
trigger mode |
Soft trigger, external trigger, differential encoder trigger |
Laser Safety Level |
Class2M |
Laser wavelength |
405nm |
Electrical Characteristics |
Data interface |
GigE |
Digital I/O |
12-pin M12 interface provides power supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232 |
powered by |
12 ~ 24 VDC |
Typical power consumption |
13W@12VDC |
structure |
Dimensions |
120mm×84mm×51mm |
weight |
about 750 g |
IP protection class |
IP67 |
temperature |
Operating temperature 0 ~ 45°C, storage temperature -30 ~ 80°C |
humidity |
20%~85%RH without condensation |
General Specifications |
software |
3DMVS |
operating system |
Windows 7/10 32/64bits (8G memory, i5 processor) |
