*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model

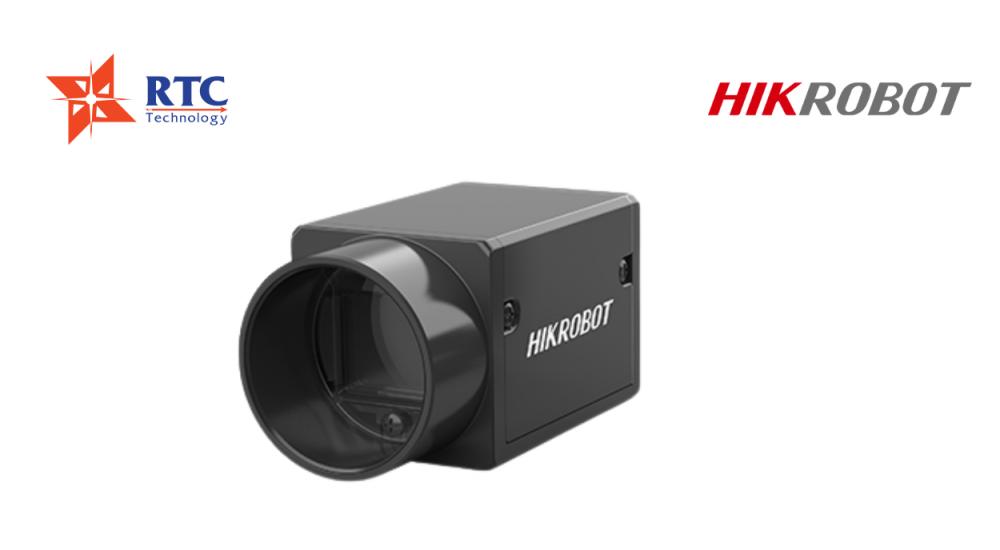

MV-CE100-ACC3M-12V
Type
10 MP 1/2.3" CMOS GigE Area Scan Camera
Camera
Sensor type
CMOS, rolling shutter
Sensor
MT9J003
Pixel Size
1.67 µm × 1.67 µm
Sensor Size
1/2.3"
Resolution
3840 × 2748
Max. Frame Rate
7 fps
Dynamic range
65 dB
SNR
34 dB
Gain
0 dB to 15.3 dB
Exposure time
50 μs to 2 s
Exposure mode
Off/Once/Continuous exposure mode
Mono/Color
Mono
Pixel format
Mono 8/10/10p/12/12p
Binning
Supports 1 × 1, 2 × 2
Dimension
Not support
Reverse image
Supports horizontal reverse image output
Image buffer
128 MB
Electrical features
Data Interface
GigE
Digital I/O
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply
12 VDC, supports PoE
Power consumption
Typ. 2.6 W@12 VDC
Mechanical
Lens mount
C-Mount
Dimension
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight
Approx. 68 g (0.15 lb.)
Ingress protection
IP30 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 80% RH, non-condensing
General
Client software
MVS or third-party software meeting with GigE Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
