*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model

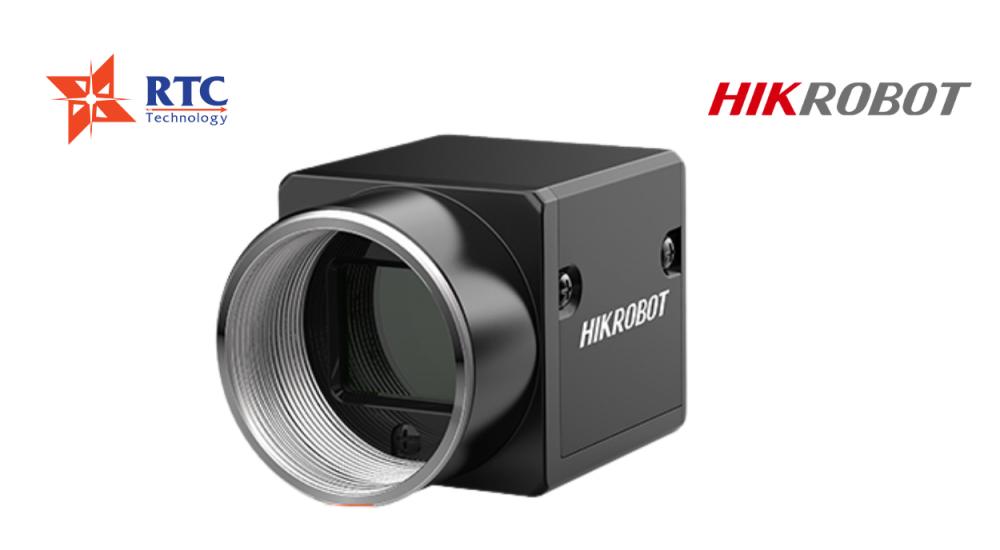

MV-CE120-10UM
Type
12 MP 1/1.7" CMOS USB3.0 Area Scan Camera
Camera
Sensor type
Rolling shutter CMOS
Sensor
IMX226
Pixel size
1.85 μm × 1.85 μm
Sensor size
1/1.7"
Resolution
4000 × 3036
Max. Frame Rate
31.9 fps
Dynamic range
70.5 dB
SNR
40.5 dB
Gain
0 dB to 27 dB
Exposure time
20 μs to 0.5 s
Shutter mode
Supports Rolling and Global Reset
Mono/Color
Mono
Pixel format
Mono 8/10/10p/12/12p
Binning
Supports 2 x 2, 4 x 4
Decimation
Supports 2 x 2, 4 x 4
Reverse image
Supports horizontal and vertical reverse image output
Image memory
128 MB
Electrical features
Data Interface
USB3.0
Digital I/O
6-pin Hirose connector provides power and I/O, including Opto-isolated input x 1 (Line 0), Opto-isolated output x 1 (Line 1), bi-directional non-isolated I/O x 1 (Line 2).
Power supply
Typ. 3.18 W@5 VDC
(USB3.0 provides power supply)
Power consumption
< 3.18 W@12 VDC
Mechanical
Lens mount
C-Mount
Dimension
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight
Approx. 80 g (0.2 lb.)
Ingress protection
IP30 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 80% RH, without condensation
General
Client software
MVS or third-party software meeting with USB3 Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
