Model |
Model |

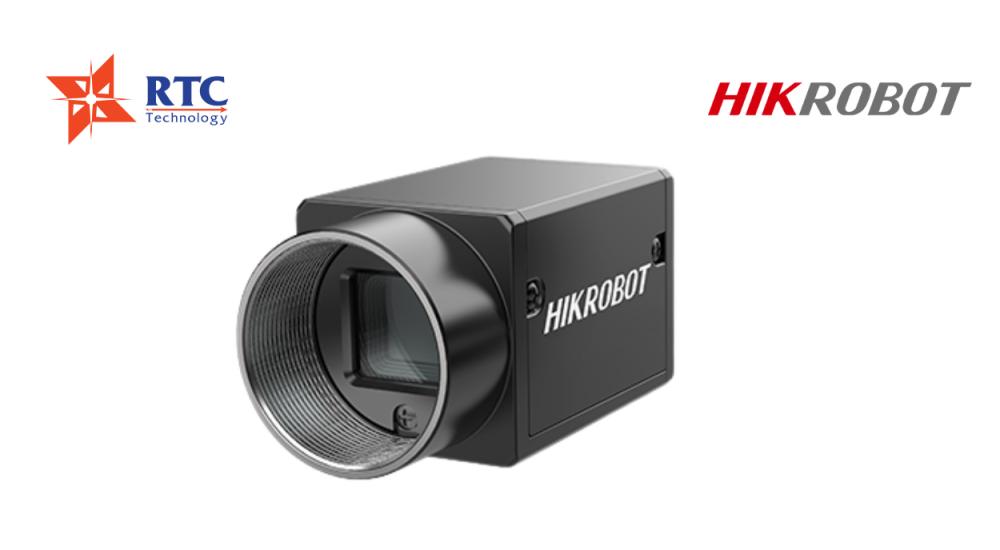

MV-CE120-10GC |
Type |
12 MP, 1/1.7" CMOS, GigE Area Scan Camera |
Camera |
Sensor type |
CMOS, rolling shutter |
Sensor |
IMX226 |
Pixel size |
1.85 µm × 1.85 µm |
Sensor size |
1/1,7" |
Resolution |
4024 × 3036 |
Max. Frame Rate |
9.6 fps |
Dynamic range |
70.5 dB |
SNR |
40.5 dB |
Gain |
0 dB to 20 dB |
Exposure time |
34 μs to 2 s |
Shutter mode |
Off/Once/Continuous exposure mode, supports Global Reset |
Mono/Color |
Color |
Pixel format |
Mono 8/10/12, RGB8, Bayer GB 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed |
Binning |
Supports 1 × 1, 2 × 2, 4 × 4 |
Decimation |
Not support |
Reverse image |
Supports horizontal and vertical reverse image output |
Image buffer |
128 MB |
Electrical features |
Data Interface |
GigE |
Digital I/O |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
Power supply |
12 VDC, supports PoE |
Power consumption |
Typ. 3.0 W@12 VDC |
Mechanical |
Lens mount |
C-Mount |
Dimension |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
Weight |
Approx. 68 g (0.15 lb.) |
Ingress protection |
IP30 (under proper lens installation and wiring) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 80% RH, without condensation |
General |
Client software |
MVS or third-party software meeting with GigE Vision Protocol |
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
Compatibility |
GigE Vision V2.0, GenICam |
Certification |
CE, FCC, RoHS, KC |
