Model |
Model |

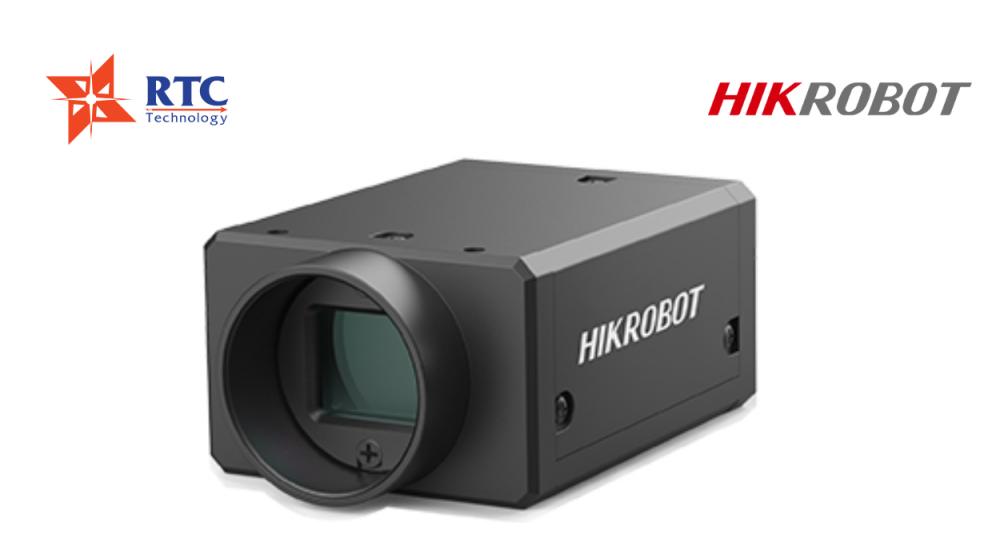

MV-CE200-10UM |
Type |
20 MP, 1" CMOS, USB3.0 Camera |
Camera |
Sensor type |
CMOS, rolling shutter |
Sensor |
IMX183 |
Pixel size |
2.4 µm × 2.4 µm |
Sensor size |
1" |
Resolution |
5472 × 3648 |
Max. Frame Rate |
19.2 fps |
Dynamic range |
65.5 dB |
SNR |
41.5 dB |
Gain |
0 dB to 20 dB |
Exposure time |
28 μs to 0.7 s |
Exposure mode |
Off/Once/Continuous exposure mode |
Sensor shutter mode |
Supports Global Reset and Rolling |
Mono/Color |
Mono |
Pixel format |
Mono 8/10/10p/12/12p |
Binning |
Supports 1 × 1, 2 × 2, 4 × 4 |
Decimation |
Supports 1 × 1, 2 × 2, 4 × 4 |
Reverse image |
Supports horizontal reverse image output |
Image buffer |
128 MB |
Electrical features |
Data Interface |
USB3.0 |
Digital I/O |
6-pin Hirose connector provides power and I/O, including opto-isolated input x 1
(Line0), opto-isolated output x 1(Line1), bi-directional non-isolated I/O x 1 (Line2) |
Power supply |
12 VDC, supports USB3.0 power supply |
Power consumption |
Typ. 2.83 W@5 VDC (USB3.0 provides power supply) |
Mechanical |
Lens mount |
C-Mount |
Dimension |
44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
Weight |
Approx. 100 g (0.2 lb.) |
Ingress protection |
IP30 (under proper lens installation and wiring) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 80% RH, without condensation |
General |
Client software |
MVS or third-party software meeting with USB3.0 Vision Protocol |
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
Compatibility |
USB3 Vision, GenlCam |
Certification |
CE, FCC, RoHS, KC |
