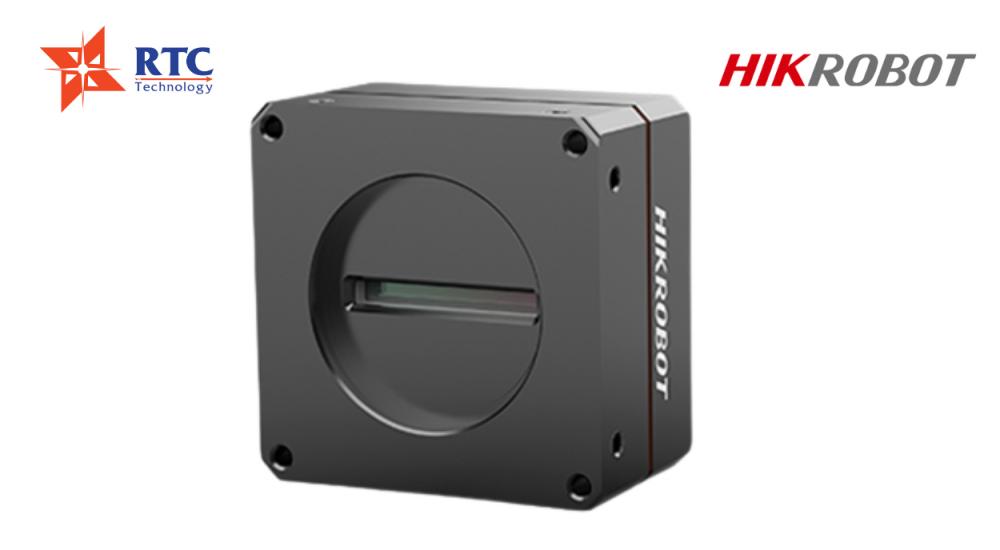

MV-CL042-91CC

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz.
Applies multiple ISP technologies and supports manual adjustment for Gamma correction, PRNUC correction, LUT,black level, etc.
Supports bi-directional I/O wiring for flexible input/output settings.
Compact design and flexible installation.
Compatible with Camera Link Protocol and GenlCam Standard.

Available Model

Color camera: MV-CL042-91CC

Dimension

MV-CL042-91CMCC 终.png

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-CL042-91CC
Model	Type	4096 P Camera Link Line Scan Camera
Camera	Sensor type	CMOS
	Pixel Size	7 μm
	Resolution	4096×2
	Image mode	Supports 1-line
	Max. Line Rate	40 kHz@ Mono 8 (Base), 50 kHz@ RGB 8 (80-bit), 100 kHz@ Bayer RGBG 8 (Full)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X, 1X2, 1X4, 1X8, 1X10
	Tap number	1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
	Dynamic range	65.6 dB
	SNR	40 dB
	Gain	Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
	Exposure time	5 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
	Mono/Color	Color
	Pixel format	Mono 8, RGB 8, Bayer RGBG 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical features	Data Interface	Camera Link
	Digital I/O	12-pin Hirose connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 6.1 W@12 VDC
Mechanical	Lens mount	M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter
	Dimension	62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5")
	Weight	Approx. 238 g (0.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temp.: -20 °C to 55 °C (-4 °F to 131 °F), storage temp.: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 95% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	Camera Link V1.2, GenICam
	Certification	CE, FCC, RoHS, KC
