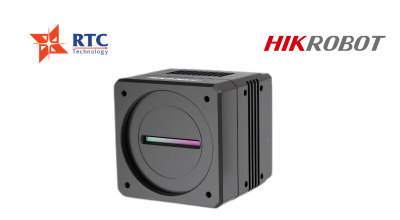

MV-CL086-91CC-PRO

Đăng ký Đăng nhập

Support 24/7: 024 6654 6858

Hotline

+84 979 639 438

Giờ mở cửa

8H00 - 17H30

/ MV-CL086-91CC-PRO

MV-CL086-91CC-PRO

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

Supports configuration modes of Base, Medium, and 80- bit via the Camera Link interface.
Supports TDI function to select different image modes.
Supports exposure time and gain adjustment, PRNUC correction, LUT, Gamma correction, etc.
Compatible with Camera Link Protocol and GenlCam Standards.

Available Model: MV-CL086-91CC-PRO

Dimension

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-CL084-91GM
Model	Type	8192 P CMOS GigE Line Scan Camera
Camera	Sensor type	CMOS
	Pixel Size	5 μm
	Resolution	8192×6
	Image mode	Supports 1-line, 2-TDI, 4-TDI
	Max. Line Rate	10 kHz (Base), 20 kHz (Medium), 34 kHz (80-bit)
	Configuration mode	Base, Medium, 80-bit
	Tap geometry	1 ×, 1 × 2, 1 × 4, 1 × 8, 1 × 10
	Tap number	1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Tap
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	62 dB
	SNR	42 dB
	Gain	Supports 1.2 ×, 2.7 ×, 4.6 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
	Mono/Color	Color
	Pixel format	RGB, Mono 8/10
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical features	Data Interface	Camera Link
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	24 VDC
	Power consumption	Typ. 20.5 W@24 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
	Dimension	84 mm × 84 mm × 89 mm (3.3" × 3.3" × 3.5")
	Weight	Approx. 883 g (1.9 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 60 °C (-4 °F to 140 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 95% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	Camera Link V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
