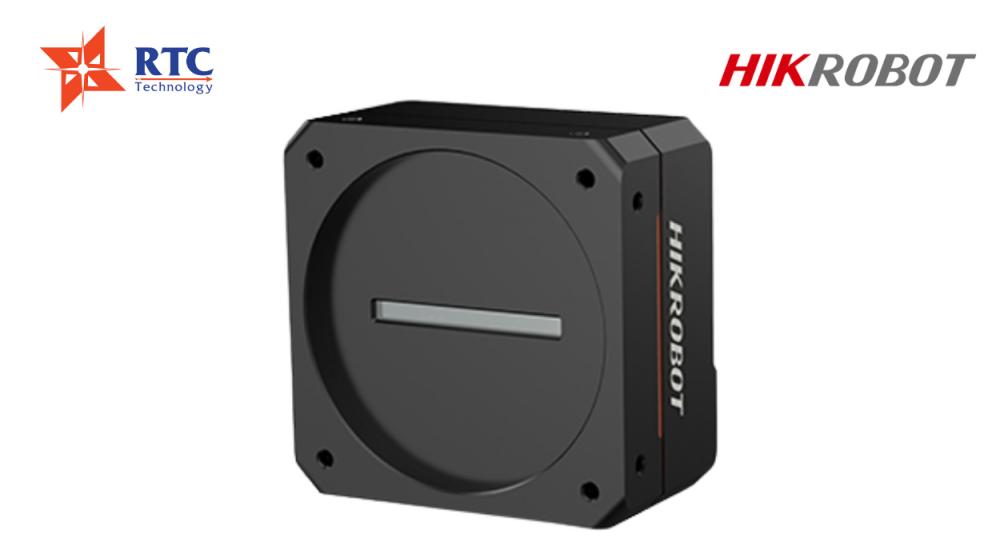

MV-CL084-91GM

Đăng ký Đăng nhập

Support 24/7: 024 6654 6858

Hotline

+84 979 639 438

Giờ mở cửa

8H00 - 17H30

/ MV-CL084-91GM

MV-CL084-91GM

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

Supports image compression mode, TDI, triggerwidth exposure, etc.
Supports manual adjustment for Gamma correction,PRNUC correction, LUT, black level, etc.
Adopts bi-directional I/O hardware design.
Compact design and flexible installation.
Compatible with GigE Vision V2.0 and GenlCamb standard.

Available Model

Mono camera: MV-CL084-91GM

Dimension

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-CL084-91GM
Model	Type	8192 P CMOS GigE Line Scan Camera
Camera	Sensor type	CMOS
	Pixel Size	5 μm
	Resolution	8192×4
	Image mode	Supports 1-line, 2-TDI, 4-TDI
	Max. Line Rate	14 kHz @Mono 8, 7 kHz @Mono 10/12, 9.4 kHz @Mono 10p/12p Image compression mode: 40 kHz @Mono 8, 20 kHz @Mono 10/12
	Dynamic range	54.8 dB
	SNR	40.3 dB
	Gain	Supports 1.2 ×, 2.7 ×, 4.6 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/Color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical features	Data Interface	GigE
	Digital I/O	12-pin Hirose connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 12.4 W@12 VDC
Mechanical	Lens mount	M72 *0.75, optical back focal length: 12 mm (0.5")
	Dimension	80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8")
	Weight	Approx. 465 g (1.0 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 95% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
