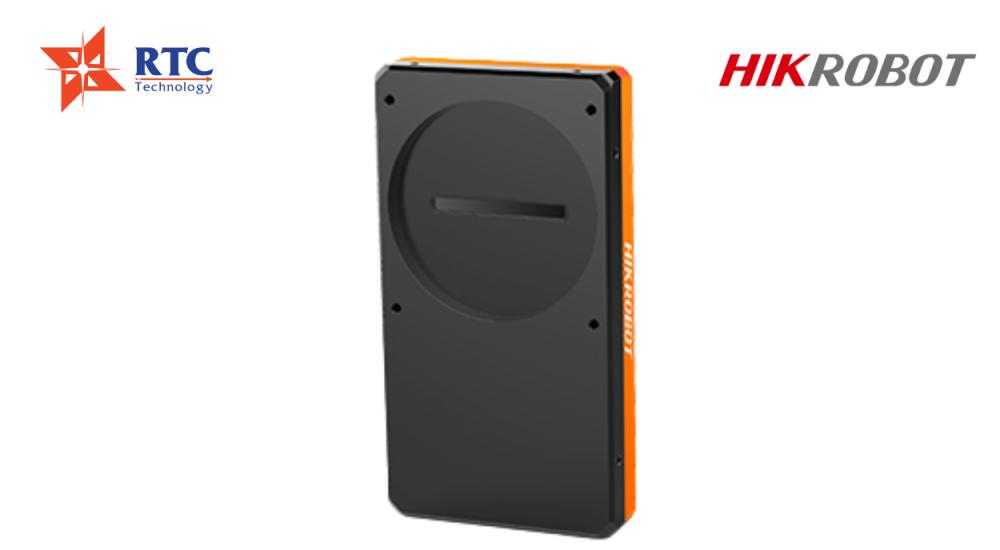

MV-CL084-90CM

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Trụ sở chính: Tầng 1, Khu P - Hateco Apollo Building, Phường Phương Canh, Thành Phố Hà Nội

Điện thoại: 0981264068

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
Supports TDI function to select different image modes.
Supports exposure time and gain adjustment, PRNUCcorrection, LUT, Gamma correction, etc.
Compact design and flexible installation.
Compatible with Camera Link Protocol and GenlCam Standard.

Available Model

Mono camera: MV-CL084-90CM

Dimension

8K CML口线阵相机尺寸图_副本.png

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-CL084-90CM
Model	Type	8192 P TDI Camera Link Line Scan Camera
Camera	Sensor type	CMOS
	Pixel Size	5 μm
	Resolution	8192×4
	Image mode	Supports 1-line, 2-TDI, 4-TDI
	Max. Line Rate	20 kHz (Base), 40 kHz (Medium), 80 kHz (Full), 100 kHz (80-bit)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X2, 1X4, 1X8, 1X10
	Tap number	2 Taps, 4 Taps, 8 Taps
	Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
	Dynamic Range	62 dB
	SNR	42 dB
	Gain	Supports 2.7 ×, 3.0 ×, 3.5 ×, 4.6 ×, 6.2 ×
	Exposure Time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
	Mono/Color	Mono
	Pixel format	Mono 8/ 10/ 12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal triggerer
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical features	Data Interface	Camera Link
	Digital I/O	12-pin Hirose connector provides power and I/O, including differential input × 2 (Line 0, Line 3), differential output × 2 (Line 1, Line 4). Camera Link provides I/O (CC1/CC2/CC3/CC4)
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 12.3 W@12 VDC
Mechanical	Lens Interface	M72*0.75, optical back focal length: 10.1 mm (0.4"), applicable to F-mount via lens adapter
	Dimension	150 mm × 80 mm × 23.8 mm (5.9" × 3.1" × 0.9")
	Weight	Approx. 400 g (0.9 lb.)
	Ingress protection	IP 40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	CameraLink V1.2, GenICam
	Certification	CE, FCC, RoHS, KC
