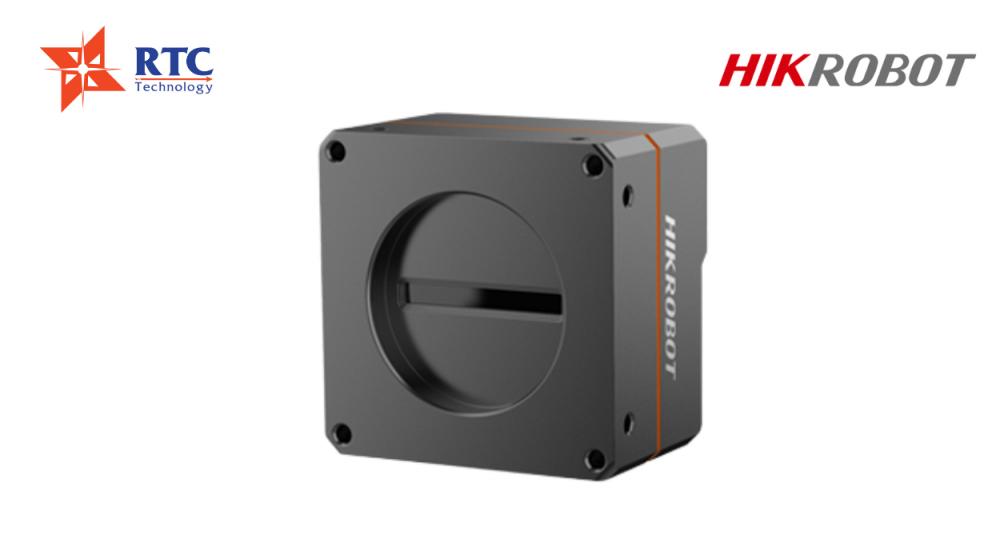

MV-CL042-90GC

Hình thức vận chuyển:

- Miễn phí lắp đặt và tư vấn kỹ thuật

- Miễn phí vận chuyển trong phạm vi 200km

- Vận chuyển ngoài 200km hỗ trợ 50% chi phí vận chuyển.

Địa chỉ mua hàng

CÔNG TY CỔ PHẦN RTC TECHNOLOGY VIỆT NAM ( RTC Technology Viet Nam JSC)

Văn phòng giao dịch: Tầng 1, Khu P - Hateco Apollo Building, P. Phương Canh,Q. Nam Từ Liêm, Hà Nội, Việt Nam

Điện thoại: 024 6654 6858

Mobile: +84 979 639 438

Email: info@rtc.edu.vn

Thời gian làm việc: 08h00′ – 17h30′.

Ngày làm việc: Thứ 2 – Thứ 7 trong tuần.

THÔNG TIN SẢN PHẨM
Thông số kỹ thuật

Key Feature

Supports auto and manual adjustment for exposure time, and manual adjustment for Gamma correction, LUT, etc.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports high bandwidth image compression mode.
Compact design and flexible installation.
Compatible with GigE Vision Protocol V2.0 and GenlCam Standard.

Available Model

Color camera: MV-CL042-90GM

Dimension

*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Model	Model	MV-CL042-90GC
Model	Type	4096 P CMOS GigE Line Scan Camera
Camera	Sensor type	CMOS
	Pixel Size	7 μm
	Resolution	4096×2
	Image mode	Standard mode
	Max. Line Rate	9 kHz @4096 × 2 RGB 8 29 kHz @4096 × 2 RGB 8 (high bandwidth function enabled)
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p,YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Dynamic Range	65.6 dB
	SNR	40 dB
	Gain	Supports × 1.0/× 1.4/× 1.6/× 2.4/× 3.2
	Exposure Time	5 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous, supports timed and trigger-width exposure
	Mono/Color	Color
	Reverse image	Supports horizontal reverse image output
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	External trigger mode	Line trigger, frame trigger, etc.
	Trigger mode	external trigger, internal trigger
	Image Buffer	512 MB
Electrical features	Data Interface	GigE
	Digital I/O	12-pin Hirose connector provides power and I/O, including configurable differential input or single input × 2 (Line 0/3), bi-directional I/O × 1 (Line 2), and differential output × 2 (Line 1/4).
	Power supply	12 VDC to 24 VDC, supports PoE
	Power consumption	< 7.0 W@12 VDC
Mechanical	Lens Interface	M42 × 1.0, back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter
	Dimension	62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6")
	Weight	Approx. 280 g (0.62 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 95% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
