Model |
Model |

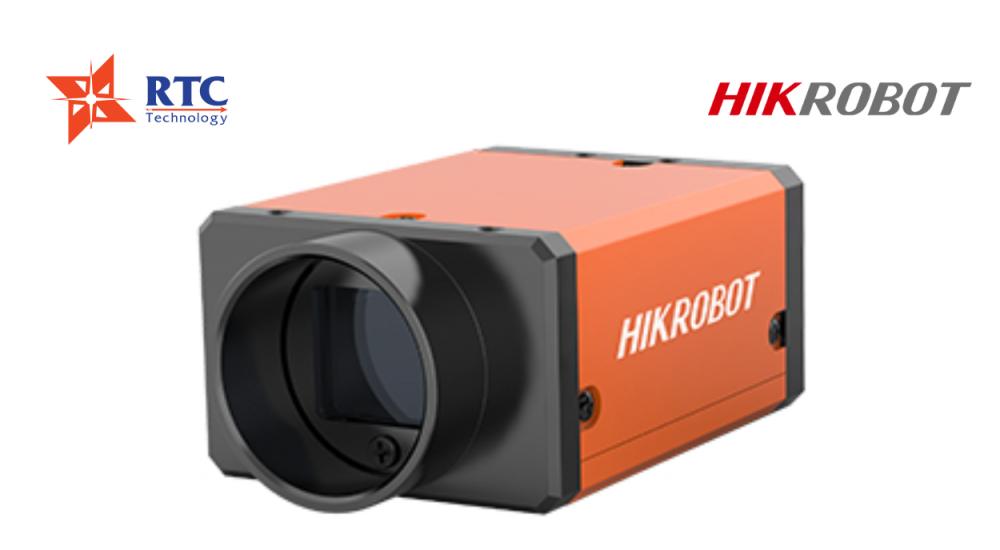

MV-CH050-10CC |
|
Type |
5 MP 2/3" CMOS Camera Link Area Scan Camera |
|
Camera |
Sensor type |
CMOS, global shutter |
|
Sensor |
IMX250 |
|
Pixel size |
3.45 μm × 3.45 μm |
|
Sensor size |
2/3" |
|
Resolution |
2432 × 2048 |
|
Max. Frame Rate |
140 fps |
|
Configuration mode |
Base, Medium, Full, 80-bit |
|
Tap geometry |
1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
|
Tap number |
2 Taps, 4 Taps, 8 Taps, 10 Taps |
|
Pixel clock |
60 MHz, 70 MHz, 85 MHz |
|
Dynamic range |
75.4 dB |
|
SNR |
40 dB |
|
Gain |
0 dB to 17 dB |
|
Exposure time |
4 μs to 10 sec |
|
Exposure mode |
Off/Once/Continuous exposure mode |
|
Mono/Color |
Color |
|
Pixel format |
Bayer RG 8/10/12, RGB 8 |
|
Binning |
Not support |
|
Decimation |
Not support |
|
Reverse image |
Supports horizontal and vertical reverse image output |
|
Electrical features |
Data Interface |
Camera Link |
|
Digital I/O |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line
0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
|
Power supply |
9 VDC to 24 VDC |
|
Power consumption |
Typ. 3.25 W@12 VDC |
|
Mechanical |
Lens mount |
C-Mount |
|
Dimension |
44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
|
Weight |
Approx. 100 g (0.2 lb.) |
|
Ingress protection |
IP30 (under correct lens installation and wiring) |
|
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
Humidity |
20% to 80% RH, without condensation |
|
General |
Client software |
MVS or frame grabber software meeting with GenlCam Protocol |
|
Operating system |
32/64-bit Windows XP/7/10 |
|
Compatibility |
Camera Link V2.0, GenlCam |
|
Certification |
CE, FCC, RoHS, KC |
