Model |
Model |

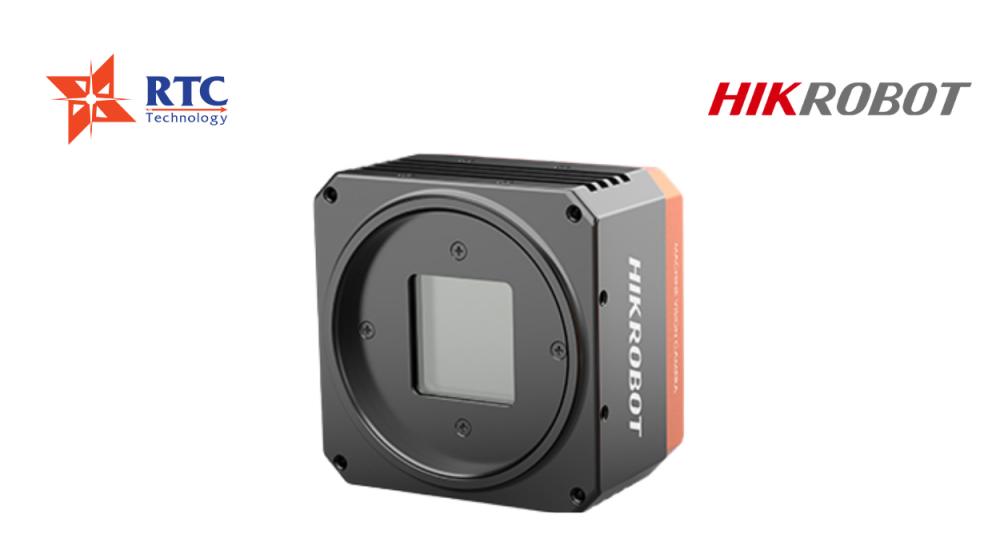

MV-CH250-20CM |
Type |
25 MP CMOS Camera Link Area Scan Camera |
Camera |
Sensor type |
Global shutter CMOS |
Sensor |
PYTHON25K |
Pixel size |
4.5 µm × 4.5 µm |
Sensor size |
23 mm × 23 mm |
Resolution |
5120 × 5120 |
Pixel clock |
60 MHz, 70 MHz, 85 MHz |
Configuration mode |
Full, 80-bit |
Tap geometry |
Full: 8X_1Y
80-bit: 10X_1Y |
Tap number |
Full: 8 Taps
80-bit: 10 Taps |
Max. Frame Rate |
31.3 fps |
Pixel format |
Mono 8 |
Dynamic range |
59 dB |
SNR |
41 dB |
Gain |
0 dB to 32 dB |
Exposure time |
45 μs to 10 s |
Shutter mode |
Off/Once/Continuous exposure mode |
Mono/Color |
Mono |
Binning |
Not support |
Decimation |
Not support |
Reverse image |
Supports horizontal and vertical reverse image output |
Electrical features |
Data Interface |
Camera Link |
Digital I/O |
12-pin Hirose connector provides power supply and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS232 × 1. |
Power supply |
9 VDC to 24 VDC |
Power consumption |
Approx. 9.4 W@24 VDC |
Mechanical |
Lens mount |
M58-Mount, optical back focal length 11.48 mm (0.5") |
Dimension |
70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7") |
Weight |
Approx. 380 g (0.8 lb.) |
Ingress protection |
IP40 (under proper lens installation and wiring) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, without condensation |
General |
Client software |
MVS or frame grabber software meeting with GenlCam Protocol |
Operating system |
32/64-bit Windows 7/10 |
Compatibility |
Camera Link V2.0, GenlCam |
Certification |
CE, FCC, RoHS, KC |
