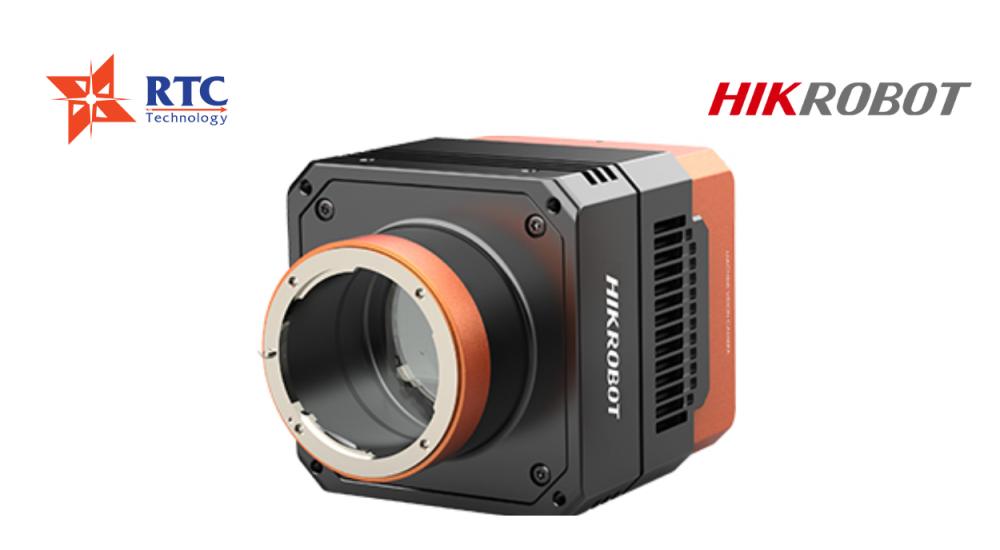

MV-CH430-61CM |
Type |
43 MP CCD Camera Link Area Scan Camera |
Camera |
Sensor type |
CCD, global shutter |
Sensor |
KAI43140 |
Pixel size |
4.5 µm × 4.5 µm |
Sensor size |
36mm x 24mm |
Resolution |
8032 × 5360 |
Configuration mode |
Base, Medium |
Tap geometry |
Base: 1X_2YE Medium: 1X2_2YE |
Tap number |
Base:2 Taps Medium:4 Taps |
Max. Frame Rate |
3.64 fps |
Pixel clock |
85 MHz |
Dynamic range |
60 dB |
SNR |
40 dB |
Gain |
0 dB to 20 dB |
Exposure time |
100 μs to 2 s |
Pixel format |
Mono 8/10/12 |
Mono/Color |
Mono |
Shutter mode |
Off/Once/Continuous exposure mode |
Binning |
Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
Decimation |
Not support |
Reverse image |
Supports horizontal reverse image output |
Electrical features |
Data Interface |
Camera Link |
Digital I/O |
12-pin Hirose connector provides power supply and I/O, including opto-isolated input x1 (Line0), opto-isolated output x1 (Line1), RS232 x1 |
Power supply |
22 VDC to 26 VDC |
Power consumption |
Typ. 16 W@24 VDC (non-TEC cooling mode) Typ. 60 W@24 VDC (TEC cooling mode) |
Mechanical |
Lens mount |
F-Mount, optical back focal length: 46.5 mm (1.8") |
Dimension |
86 mm x 86 mm x 87.3 mm (3.39" x 3.39" x 3.44") |
Weight |
Approx. 900 g (1.98 lb.) |
Ingress protection |
IP40 (under proper lens installation and wiring) |
Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
Humidity |
20% to 95% RH, non-condensing |
General |
Client software |
MVS or frame grabber software meeting with GenlCam Protocol |
Operating system |
32/64-bit Windows XP/7/10 |
Compatibility |
Camera Link V2.0, GenlCam |
Certification |
CE, FCC, RoHS, KC |
