*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Model
Model

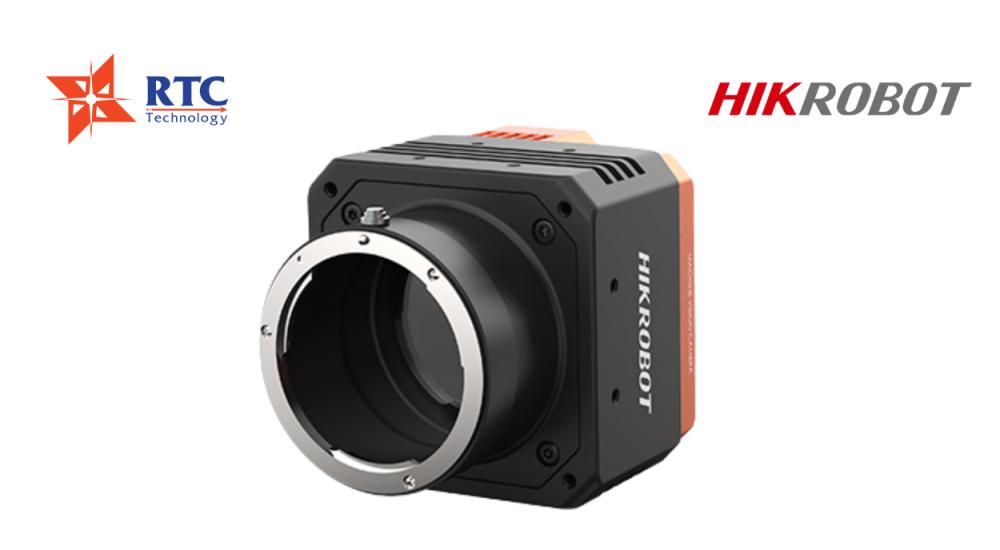

MV-CH310-10GM
Type
31 MP CMOS Area Scan Camera
Camera
Sensor type
CMOS, global shutter
Sensor
IMX342
Pixel size
3.45 μm × 3.45 μm
Sensor size
22.3 mm × 16.7 mm
Resolution
6464 × 4852
Max. Frame Rate
3.9 fps
Dynamic range
73 dB
SNR
40 dB
Gain
0 dB to 24 dB
Exposure time
Minimum exposure: 3 μs to 33 μs; normal exposure: 36 μs to 2 s
Exposure mode
Off/ Once /Continuous exposure mode
Mono/Color
Mono
Pixel format
Mono 8/10/10p/12/12p
Acquisition mode
Continuous mode, single frame mode
Binning
Supports 1 × 1, 2 × 2
Decimation
Supports 1 × 1, 2 × 2
Reverse image
Supports horizontal and vertical reverse image output
Image buffer
512 MB
Electrical features
Data Interface
GigE
Digital I/O
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply
9 VDC to 26 VDC
Power consumption
9 W@12 VDC
Mechanical
Lens mount
M58-mount, optical back focal length 11.48 mm (0.5"); F-mount, optical back focal length 46.5 mm (1.8")
Dimension
F-Mount (with fan): 74 mm x 74 mm x 80.1 mm (2.9" x 2.9" x 3.2")
Weight
F-Mount (with fan): < 600 g (1.3 lb)
Ingress protection
IP40 (with lens and cables correctly installed)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 95% RH, without condensation
General
Client software
MVS or third-party software meeting with GigE Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
